Approvals

Specification & Standard
Size Range
15MM To 50MM
Temperature Range
Upto 150°C
Max Inlet Pressure
0.5 kg/cm²
Pressure Adjusting Range
100 ~ 1000 mmwc
Body Style
Globe Type
Body Materials
CF8 / CF8M
Piston Materials
Stainless Steel
Seat Materials
NBR / EPDM / VITON
Design Standard
Manufacture - Standard
Testing Standard
Manufacture - Standard
Face To Face
Manufacture - Standard
Applications
Gas
End Connection
Screwed End
Features & Benefits
1 – Compact Design: Its small size makes it ideal for applications with limited space, allowing for installation in tight or confined areas.
2 – Precise Pressure Control: Offers accurate regulation of low pressure, ensuring stable and consistent performance for sensitive or small-scale systems.
3 – Durable Construction: Built with high-quality materials to provide long-lasting durability and reliability, even in demanding conditions.
4 – Easy Adjustment: Features intuitive controls for straightforward adjustment of pressure settings, enabling fine-tuning to meet specific needs.
5 – Efficient Performance: Delivers efficient pressure regulation with minimal energy loss, contributing to overall system efficiency.
6 – Low Maintenance: Designed for minimal maintenance requirements, reducing the need for frequent servicing and ensuring dependable operation.
Micro

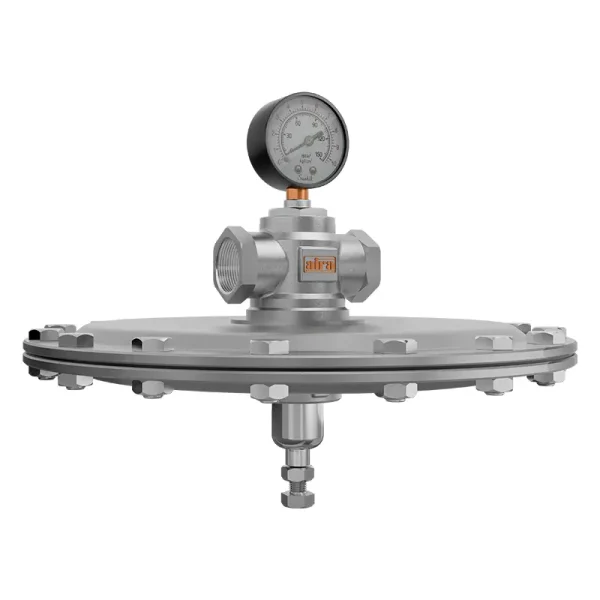

Pressure Reducing Valve Screwed

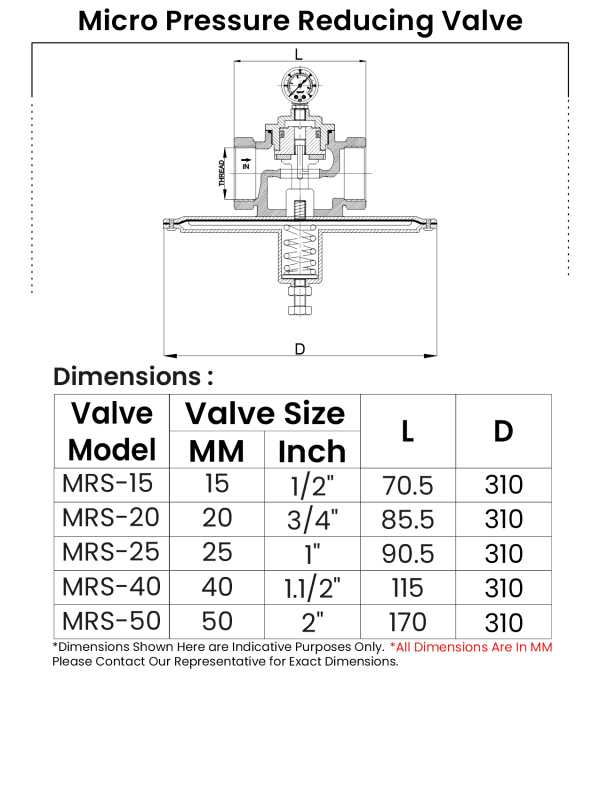

Dimension Table



Micro
Pressure Reducing Valve Screwed
Dimension Table
