Metal Seated

Pressure Reducing Valve Flanged

Size Range
15MM To 80MM
Temperature Range
Upto 350°C
Working Pressure
Upto 20 kg/cm²
Inquiry Now

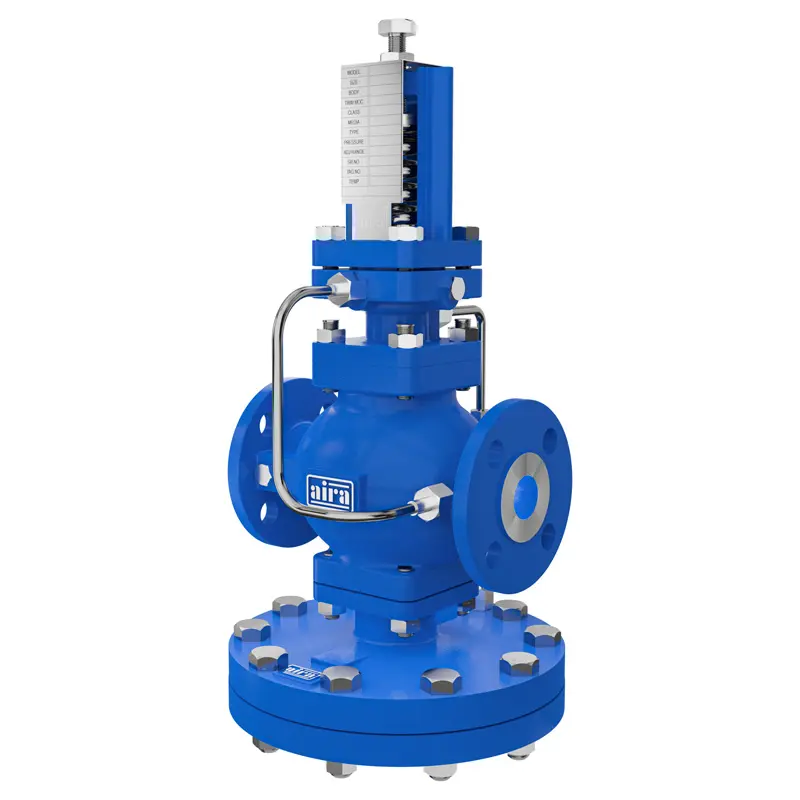

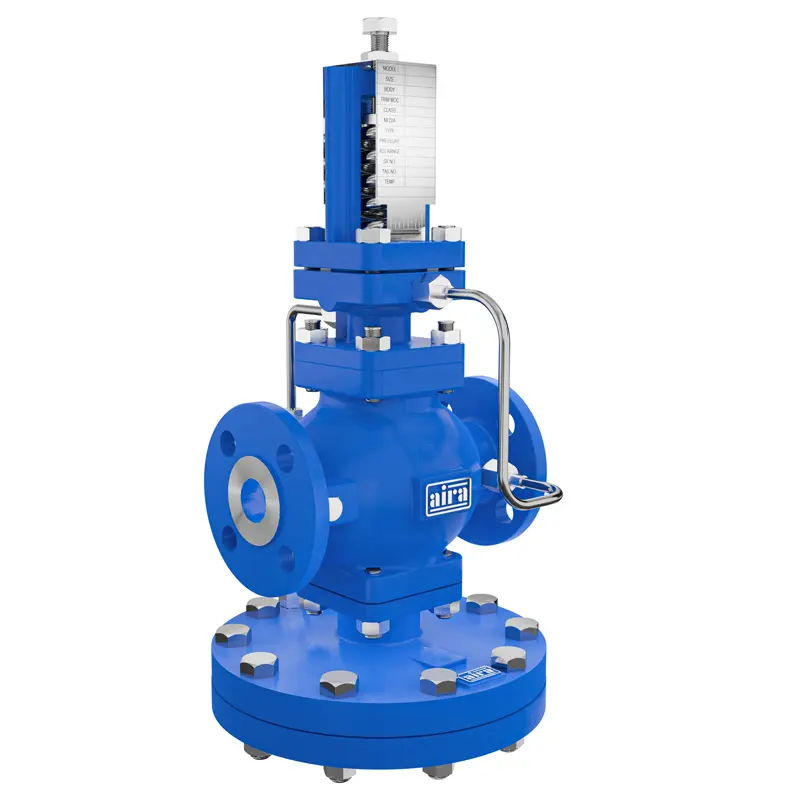

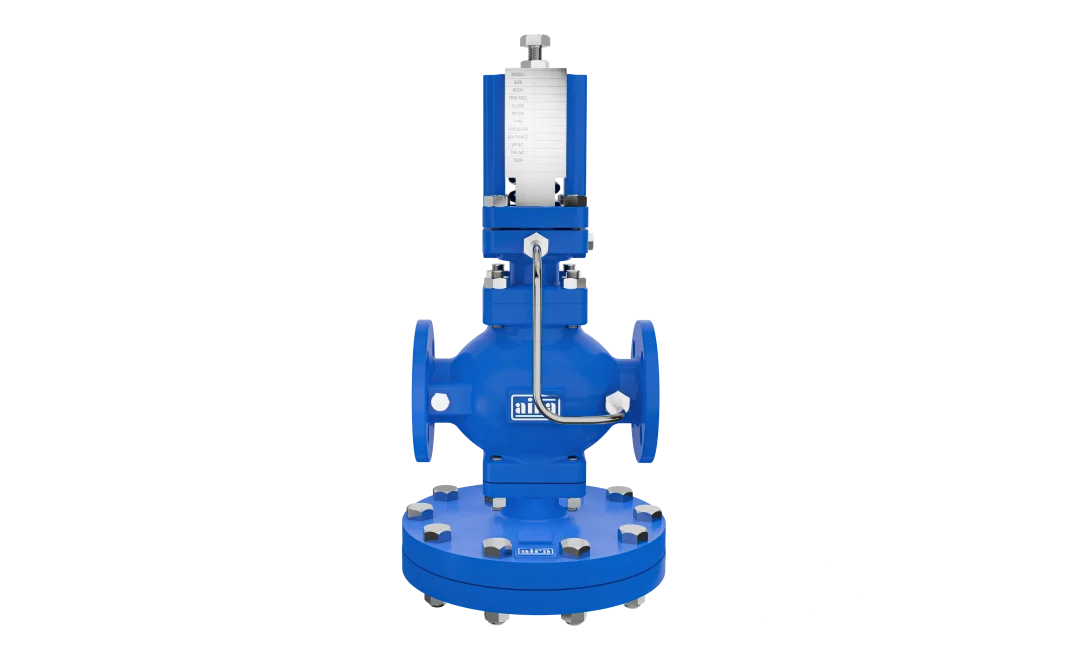

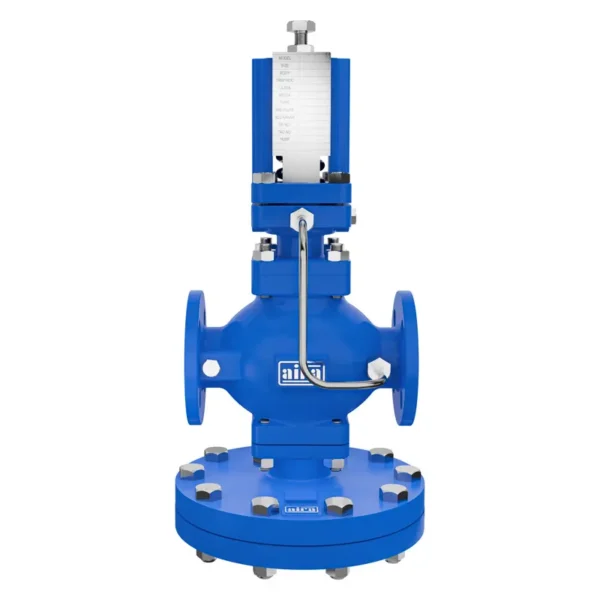

Metal Seated Pressure Reducing Valve Flanged

Size Range
15MM To 80MM
Temperature Range
Upto 350°C
Working Pressure
Upto 20 kg/cm²
Inquiry Now

Approvals

“aira” metal seated pressure reducing valve delivers precise and reliable pressure control in demanding environments. Featuring a durable metal seat, it ensures long-term performance and resistance to wear. This valve is designed for various industrial applications, providing stable pressure regulation and easy maintenance to enhance system efficiency and safety.

Specification & Standard

Size Range

15MM To 80MM

Temperature Range

Upto 350°C

Max. Inlet Pressure

Upto 20 kg/cm²

Pressure Adjusting Range

0.5 ~ 10 kg/cm²

Body Style

Globe Type

Flange Drilling

150# / 300#

Body Materials

CF8 / CF8M / WCB / S.G.IRON

Piston Materials

S. S. 304 / 316

Seat Materials

Stainless Steel

Design Standard

Manufacture - Standard

Testing Standard

Manufacture - Standard

Face To Face

Manufacture - Standard

Applications

Steam

End Connection

Flanged End

Features & Benefits

1 – Durable Metal Seat: Equipped with a robust metal seat for increased resistance to wear and extended valve life, even under high-pressure conditions.

2 – Precision Pressure Control: Ensures accurate and stable regulation of pressure, maintaining consistent system performance and safety.

3 – High Performance: Capable of handling high-pressure applications with reliable pressure reduction and control.

4 – Enhanced Durability: Designed to withstand harsh environments and demanding applications, offering long-term reliability.

5 – Ease of Maintenance: Features a design that allows for straightforward installation and maintenance, reducing downtime and operational costs.

6 – Compact and Robust Design: Offers a compact yet sturdy construction, fitting into various system configurations without compromising performance.

7 – Corrosion Resistance: Constructed with materials that provide resistance to corrosion, ensuring longevity and reliable operation in challenging conditions.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
