Micro

Pressure Reducing Valve Flanged

Size Range
15MM To 50MM
Temperature Range
Upto 150°C
Working Pressure
0.5 kg/cm²
Inquiry Now

Micro Pressure Reducing Valve Flanged

Size Range
15MM To 50MM
Temperature Range
Upto 150°C
Working Pressure
0.5 kg/cm²
Inquiry Now

Approvals

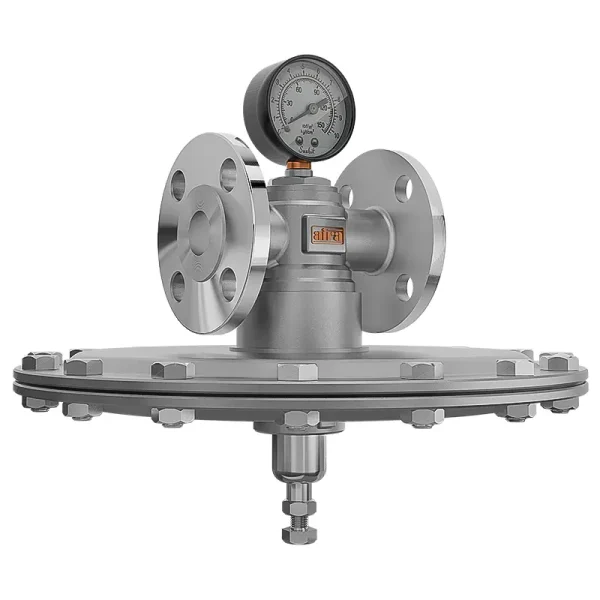

“aira” Micro Pressure Reducing Valve is a compact and efficient solution for managing low-pressure applications. Designed for precision, it provides stable pressure regulation in confined spaces, ensuring reliable performance and protection for sensitive equipment. Ideal for small-scale or delicate systems, this valve combines durability with high accuracy for effective pressure control.

Specification & Standard

Size Range

15MM To 50MM

Temperature Range

Upto 150°C

Max Inlet Pressure

0.5 kg/cm²

Pressure Adjusting Range

100 ~ 1000 mmwc

Body Style

Globe Type

Flange Drilling

150#

Body Materials

CF8 / CF8M

Piston Materials

Stainless Steel

Seat Materials

NBR / EPDM / VITON

Design Standard

Manufacture - Standard

Testing Standard

Manufacture - Standard

Face To Face

Manufacture - Standard

Applications

Only For Gas

End Connection

Flanged End

Features & Benefits

1 – Compact Design: Its small size makes it ideal for applications with limited space, allowing for installation in tight or confined areas.

2 – Precise Pressure Control: Offers accurate regulation of low pressure, ensuring stable and consistent performance for sensitive or small-scale systems.

3 – Durable Construction: Built with high-quality materials to provide long-lasting durability and reliability, even in demanding conditions.

4 – Easy Adjustment: Features intuitive controls for straightforward adjustment of pressure settings, enabling fine-tuning to meet specific needs.

5 – Efficient Performance: Delivers efficient pressure regulation with minimal energy loss, contributing to overall system efficiency.

6 – Low Maintenance: Designed for minimal maintenance requirements, reducing the need for frequent servicing and ensuring dependable operation.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
