“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates Long Service Life, Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Dsign Make The aira Plug Valves A Preferred Choice In Severe Service Conditions
Specification & Standard
Design & Manufacturer
API 599/ BS 5353
Inspection & Testing
API 598/ EN 12266 - 1
Media
Air / Water / Oil / Gas / Nitrogen & Chemical
Body Material
CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Plug Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Seat Material
PTFE, RPTFE, CFT, GFT, TFM-1600, AIRA-250
Face To Face
ASME B 16.10
Leakage Class
Class Vi ISO - 5208
End Connection
Jacketed Type Flanged End
Size Range
1/2" To 18"
Tempreature Range
-50' C TO 300' For Soft Seated Valves. Contact Works For Special Requierment
Working Pressure
Up to 10 Kg/Cm²
Pressure Class
150#, 300#
Flanged Drilling
ASME B 16.5 Class 150#/ 300#
Certification
Design CE Approved, SIL3 Approved, IBR Approved, FIRE SAFE Approved, ISO Approved
Features & Benefits
1- Easy Operation 0° – 90°
2- Compact And Robust Body Design (One – Piece Cast Body)
3- PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports
4- Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)
5- PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmosphere
6- Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility
7- Low Weight
2 Way

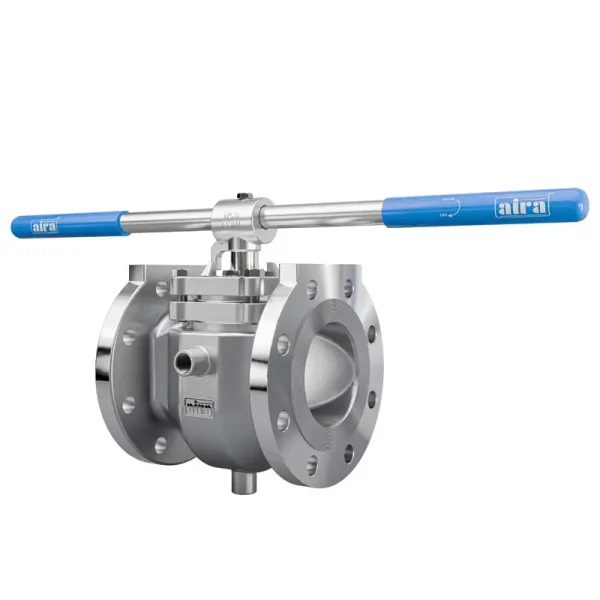

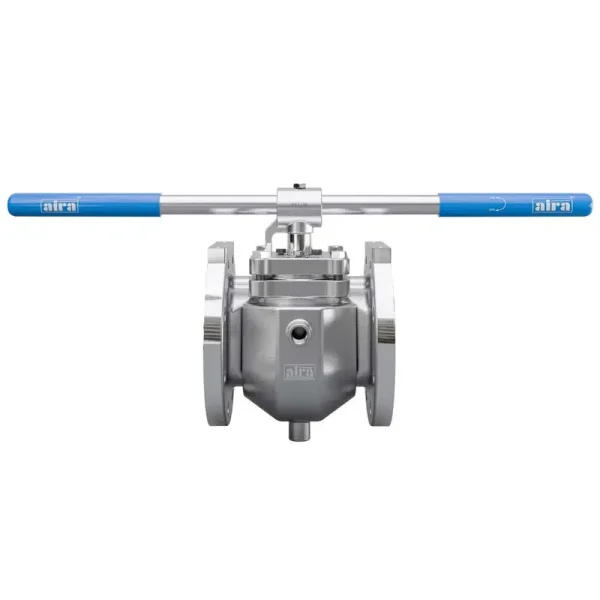

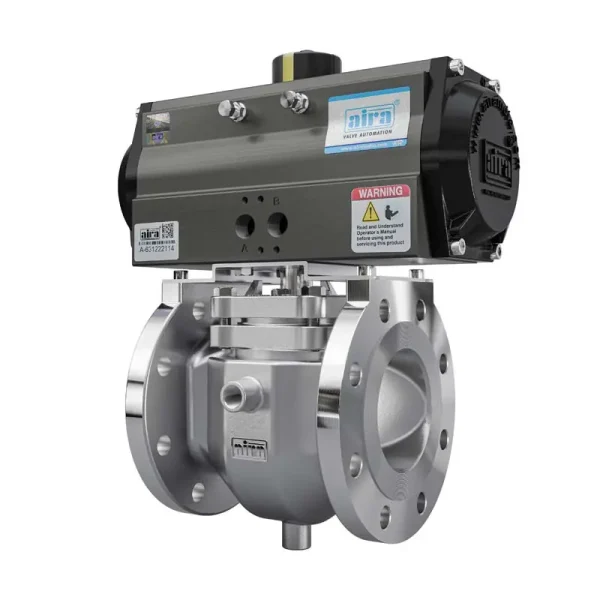

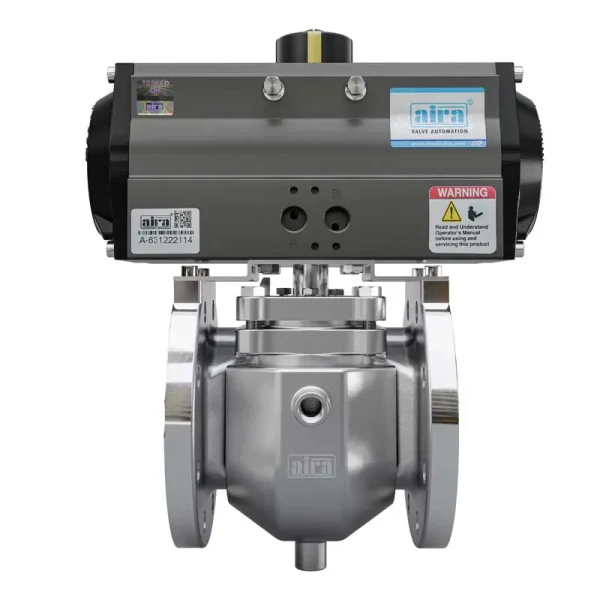

Fully Jacketed Plug Valve
Dimension Table



2 Way
Fully Jacketed Plug Valve
Dimension Table
