Metal To Metal Lubricated

Flanged End Plug Valve

Size Range
25 MM To 100 MM
Temperature Range
High Tempreature Up To 350°C
Working Pressure
3 To 4 BAR
Inquiry Now

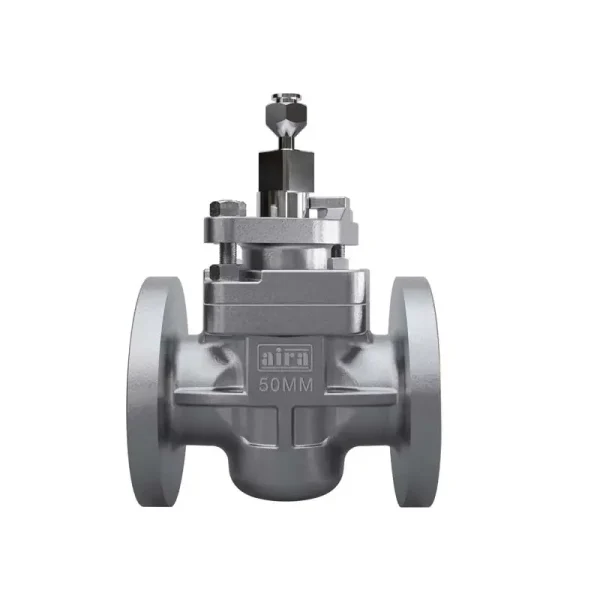

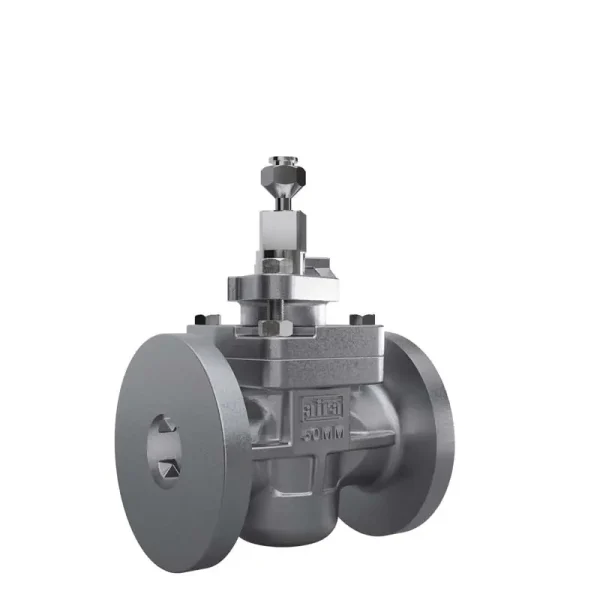

Metal To Metal Lubricated Flanged End Plug Valve

Size Range
25 MM To 100 MM
Temperature Range
High Tempreature Up To 350°C
Working Pressure
3 To 4 BAR
Inquiry Now

Approvals

“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates Long Service Life,Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Design Make the Aira Plug Valves A Preferred Choice In Severe Service Conditions

Specification & Standard

Design & Manufacturer

API 599/ BS 5353

Valve Face To Face Dimension

AS PER 125#

Inspection & Testing

API 598/ EN 12266-1

Leakage Class

Class Vi ISO - 5208

End Connection

Flanged End

Plug Material

CF8, CF8M - Stem & Combined

Media

Air/ Water/ Oil/ Gas/ Nitrogen & Chemical

Size Range

25 MM TO 100 MM

Tempreature Range

High Tempreature Up To 350°C

Pressurre Class

3 To 4 Bar

Body Material

DI, CI,WCB, CF8, CF8M, CF3, CF3M

Seat Material

Metal to Metal

Flange Drilling

As Per 125#

Certification

IBR, ISO, FIRE SAFE

Features & Benefits

1- Easy Operation 0° – 90°

2- Compact And Robust Body Design (One – Piece Cast Body)

3- PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports

4- Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)

5- PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmosphere

6- Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility

7- Low Weight

Metal To Metal Lubricated

Flanged End Plug Valve

Dimension Table

Metal To Metal Lubricated

Flanged End Plug Valve

Dimension Table
