3 Way

Sleeved Flanged End Plug Valve

Size Range
1/2'' To 6''
Temperature Range
Up To 250°C (AIR 250°C) 180°C (PTFE)
Working Pressure
10 BAR
Inquiry Now

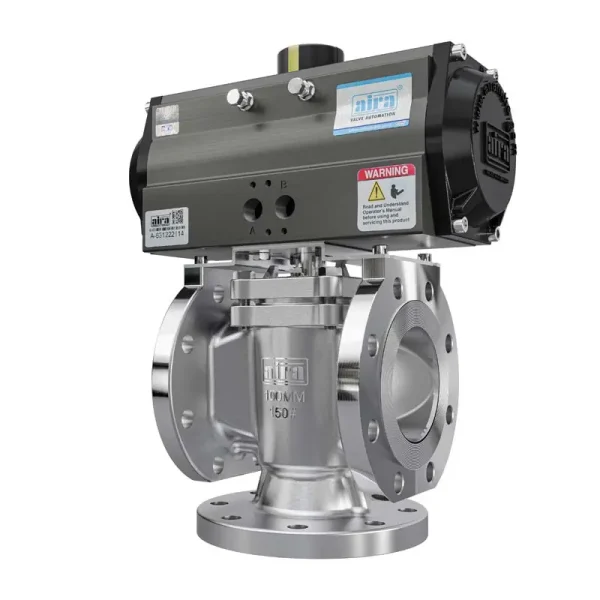

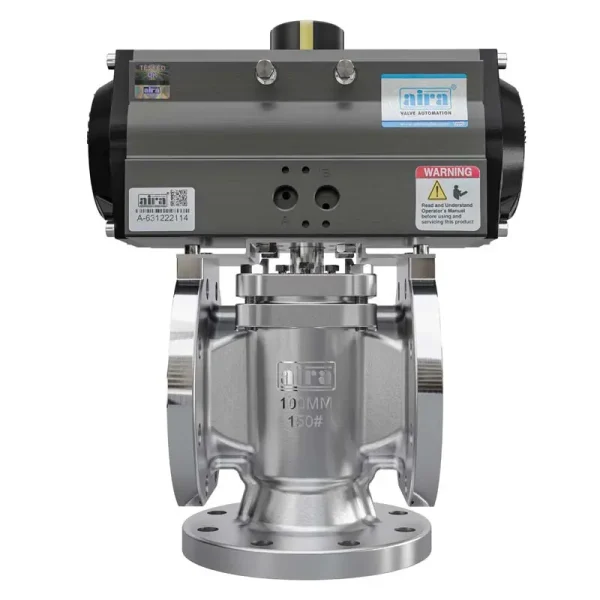

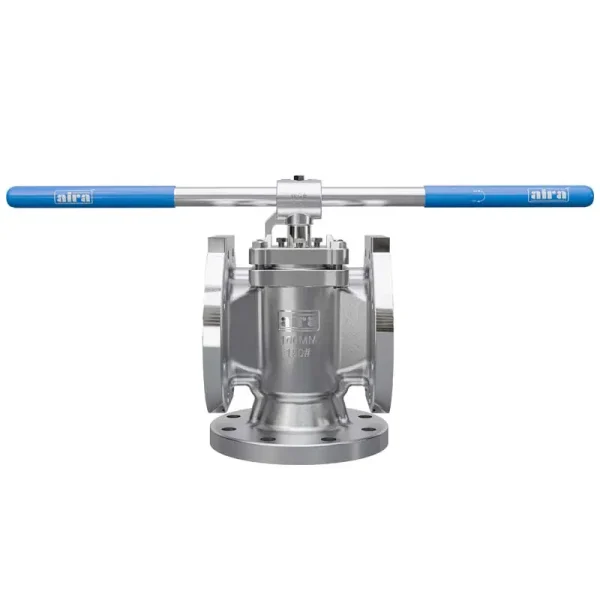

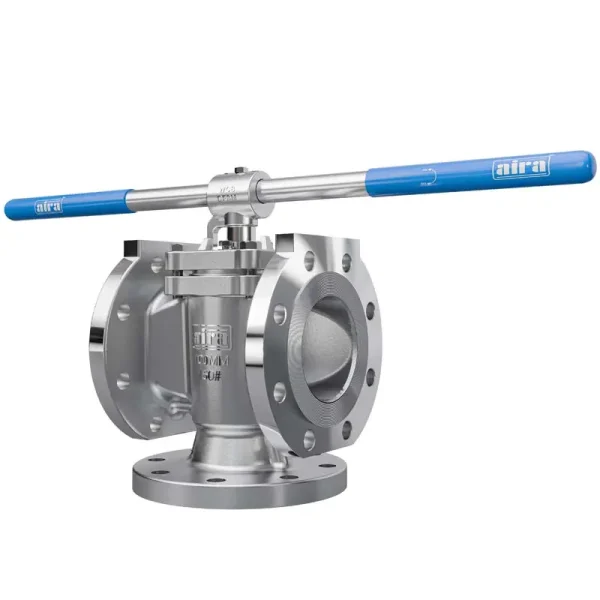

3 Way Sleeved Flanged End Plug Valve

Size Range
1/2'' To 6''
Temperature Range
Up To 250°C (AIR 250°C) 180°C (PTFE)
Working Pressure
10 BAR
Inquiry Now

Approvals

“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates Long Service Life, Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Design Make The aira Plug Valves A Preferred Choice In Severe Service Conditions

Specification & Standard

Design & Manufacturer

API 599/ BS 5353

Valve Face To Face Dimension

AS Per Mfg Std

Inspection & Testing

API 598/ EN 12266-1

Leakage Class

Class VI ISO - 5208

End Connection

Flanged 150#/ 300#

Size Range

1/2'' To 6''

Temperature Range

-50' C TO 300' For Soft Seated Valves. Contact Works For Special Requierment

Pressure Class

10 BAR

Media

Air / Water/ Oil / Gas / Nitrogen & Chemical

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Plug Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Seat Material

PTFE, RPTFE, CFT, GFT, TFM-1600, AIRA-250

Flange Drilling

ASME B 16.5 Class 150#

Certification

Design CE Approved, SIL3 Approved, IBR Approved, Fire Safe Approved, ISO Approved

Face To Face

ASME B 16.10

Features & Benefits

1 – Easy Operation 0° – 90°

2 – Compact And Robust Body Design (One – Piece Cast Body)

3 – PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports

4 – Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)

5 – PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmosphere

6 – Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility

7 – Low Weight

Fire Safe Design

Direct Mounting As Per ISO 5211

3 Way

Sleeved Flanged End Plug Valve

Dimension Table

3 Way

Sleeved Flanged End Plug Valve

Dimension Table
