2 Way

Flanged End Plug Valve

Size Range
1/2'' To 18''
Temperature Range
Up To 250°C (aira 250°C) 180°C (PTFE)
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

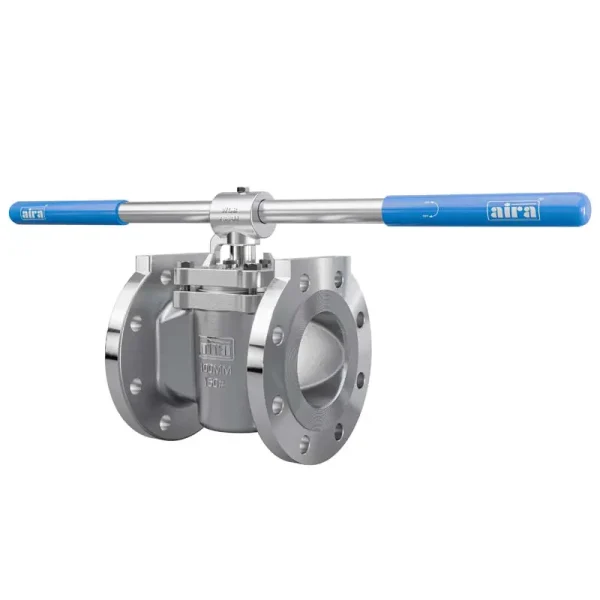

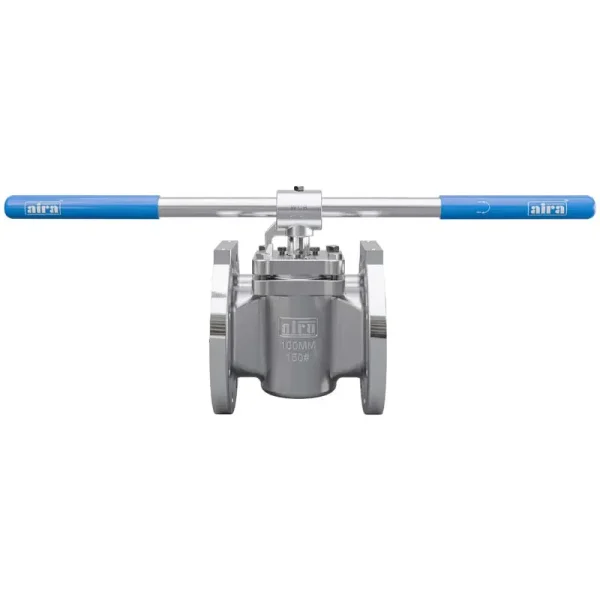

2 Way Flanged End Plug Valve

Size Range
1/2'' To 18''
Temperature Range
Up To 250°C (aira 250°C) 180°C (PTFE)
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications. Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates. Long Service Life, Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Design Make The aira Plug Valves A Preferred Choice In Severe Service Conditions.

Specification & Standard

Design & Manufacturer

API 599/ BS 5353

Valve Face To Face Dimension

ASME B 16.10

Inspection & Testing

API 598/ EN 12266-1

Leakage Class

Class Vi ISO- 5208

End Connection

Flanged 150# & 300#

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Plug Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Seat Material

PTFE, RPTFE, CFT, GFT, TFM-1600, aira-250

Certification

Design CE Approved, SIL3 Approved, IBR Approved, FIRE SAFE Approved, ISO Approved

Size Range

1/2'' to 18''

Tempreature Range

-50' C To 300' For Soft Seated valves. Contact Works For Special Requierment

Working Pressure

Up to 10 Kg/Cm²

Pressure Class

150#, 300#

Media

Air / Water/ Oil / Gas / Nitrogen & Chemical

Flange Drilling

Asme B 16.5 Class 150#/ 300#

Face To Face

ASME B 16.10

Features & Benefits

1 – Easy Operation 0° – 90°

2 – Compact And Robuts Body Design (One – Piece Cast Body)

3 – PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports

4 – Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)

5 – PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmoshere

6 – Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility

7 – Low Weight

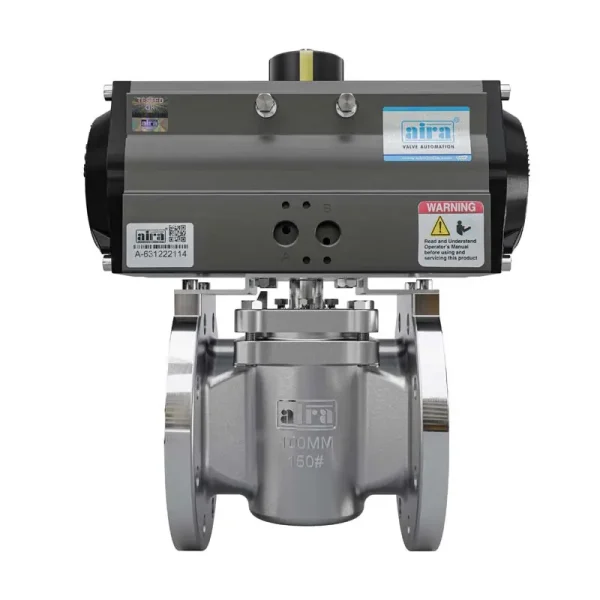

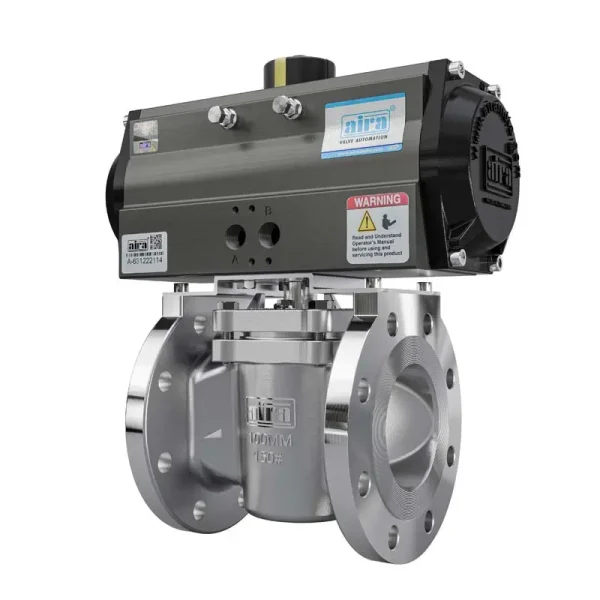

Direct Mounting As Per ISO 5211

Fire Safe Design

2 Way

Flanged End Plug Valve

Dimension Table

2 Way

Flanged End Plug Valve

Dimension Table
