2 Way

Flush Bottom Reduce Bore Ball Valve

Size Range
1.1/2" To 14"
Temperature Range
Upto 180°C
Working Pressure
Upto 10Kg/cm²
Inquiry Now

2 Way Flush Bottom Reduce Bore Ball Valve

Size Range
1.1/2" To 14"
Temperature Range
Upto 180°C
Working Pressure
Upto 10Kg/cm²
Inquiry Now

Approvals

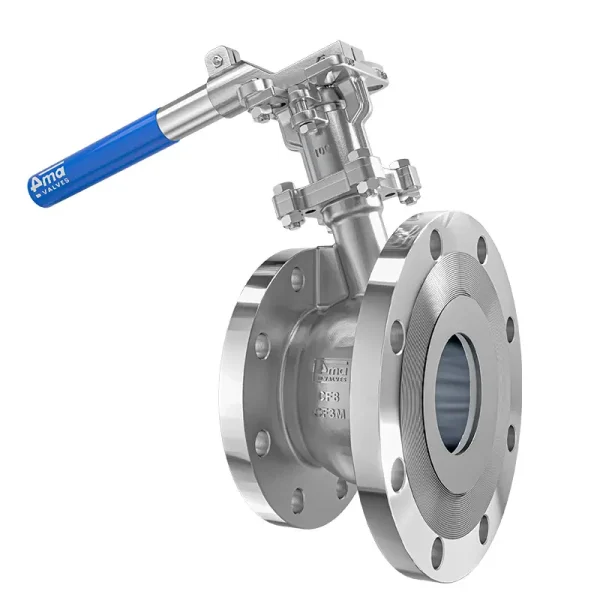

“aira”  2-way flush bottom reduced bore ball valve is expertly designed for efficient flow control in various industrial applications. With its reduced bore construction, this valve is engineered to offer a compact solution while still maintaining effective flow regulation. The flush bottom feature ensures easy maintenance and cleanliness, making this valve an excellent choice for systems where operational hygiene and regular upkeep are essential.

Specification & Standard

Size Range

1.1/2" To 14"

Tempreature Range

Upto 180°C

Pressure Class

Upto 10Kg/cm²

Seals Material

PTFE / CFT / GFT / PEEK / TFM

Body Material

ASTM A 216 WCB / ASTM A 351 CF8 / CF8M / CF3M

Ball Material

A 351 Gr. CF8 / CF8M / CF3M

Media

Air / Water / Oil / Gas & Chemical

Features & Benefits

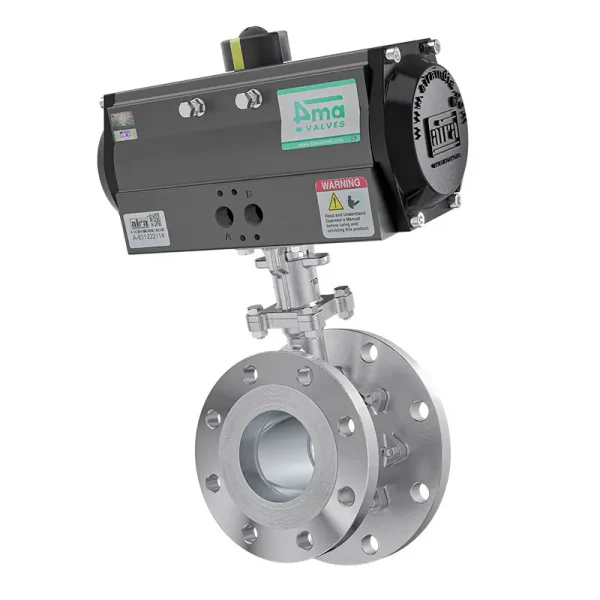

Direct Mounting As Per ISO 5211

Get in touch with our team at +91 9099477256 to receive the Dimension Table
