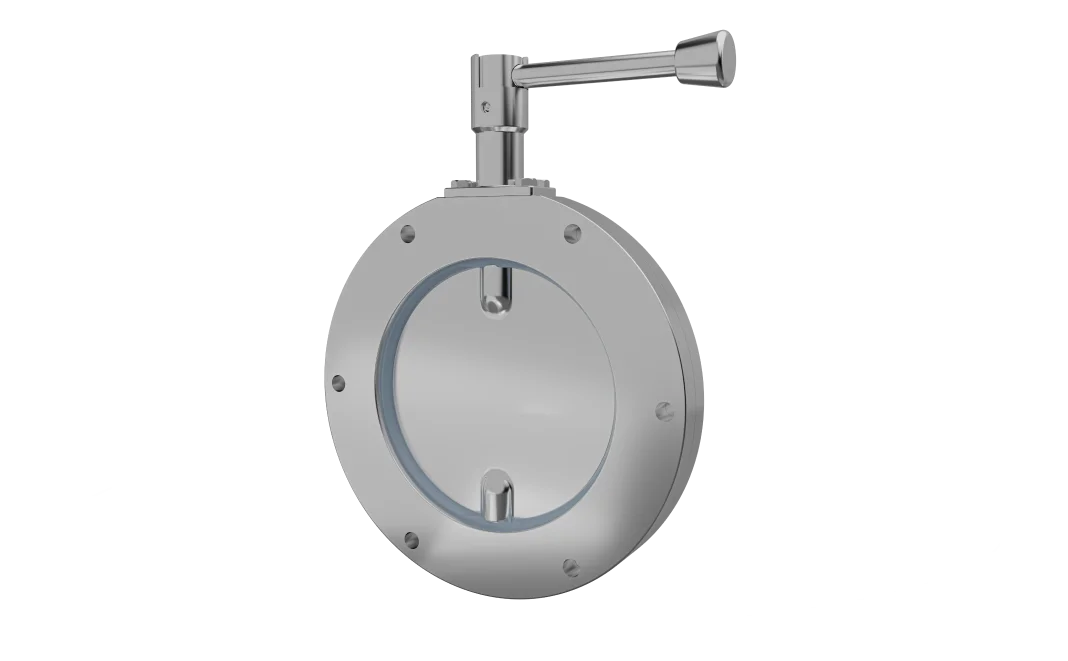

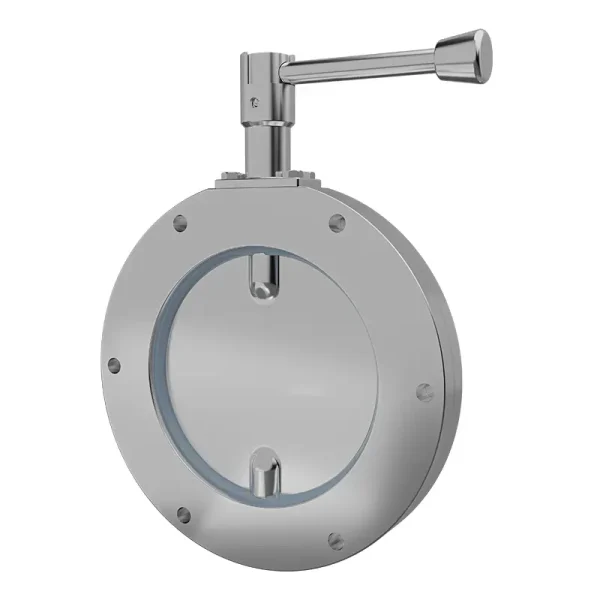

“aira” Offers Pharmaceutical Mirror Finish Butterfly Valve is designed for high-purity applications, featuring a mirror-polished surface that ensures minimal particle retention and easy cleaning. Ideal for pharmaceutical and biotech industries, it provides precise control over flow with a hygienic design that meets stringent sanitary standards.
Specification & Standard
Size Range
1" To 20"
Temperature Range
Upto 180°C
Working Pressure
Max. 3 To 4 KG/cm²
MOC
CF8 / CF8M / CF3M
Seals
SILICON (Food Grade) White EPDM
Leakage
Class V To VI
Media
Air / Water / Oil / Gas / Powder / Vacuum
End Connection
Wafer Type
Features & Benefits
The aira Pharmaceutical Mirror Finish Butterfly Valve is meticulously designed for optimal performance in pharmaceutical and biotech applications, where purity and precision are paramount.
1 – Mirror Finish: The valve’s high-gloss mirror finish minimizes bacterial growth and facilitates easy cleaning and sterilization, meeting stringent hygiene standards.
2 – Material Quality: Constructed from high-grade stainless steel (e.g., 316L) to ensure durability, resistance to corrosion, and compliance with pharmaceutical industry regulations.
3 – Precision Engineering: The valve offers precise flow control and reliable shut-off, essential for maintaining accurate process conditions.
4 – Smooth Operation: The design includes a low-torque, ergonomic handle or actuator for effortless operation, ensuring smooth and reliable performance.
5 – Leak-Free Performance: Equipped with high-quality seals and gaskets to prevent leaks and ensure integrity in critical applications.
6 – Easy Maintenance: Designed for quick disassembly and reassembly, simplifying maintenance and reducing downtime.
7 – Sanitary Design: Features a streamlined body and minimal crevices to prevent product entrapment and facilitate thorough cleaning.
Pharmaceutical
Mirror Finished Butterfly Valve

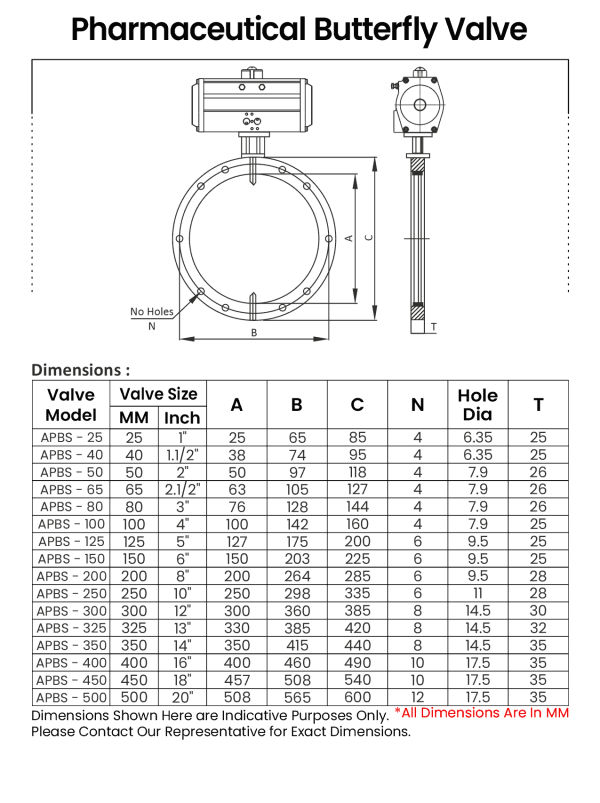

Dimension Table



Pharmaceutical
Mirror Finished Butterfly Valve
Dimension Table
