“aira” Offers 2/2 Way Pneumatic Cylinder Operated Investment Casting Angle Type Controls Valve. It has two Working Types, Normally Open & Normally Closed.
Specification & Standard
Size Range
15MM To 100MM
Tempreature Range
PTFE 180°C / CFT 220°C
Pressurre Class
Upto 10 BAR
Shutoff Rating
Tight Shut off
Body Style
Y - Body - Screw End, Flange End, Triclover End
Flange Drilling
150#
Certification
CE Approved
Body Materials
S. S - 304, S. S - 316-L
Stem Materials
S. S - 304
Seat Materials
PTFE, CFT, GFT
Plug Materials
S. S - 304
Design Standard
Manufacture - Standard
Testing Standard
API - S98, PN10
Face To Face
Manufacture - Standard
Leakage
As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight
Applications
Air / Water / Oil / Gas / Steam & Chemical
Features & Benefits
1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features.
2 – Best Choice For Speedy And Multiple Operation.
3 – Due To Angle Shape, Easy To Mount At Congested Place.
4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids.
5 – Full Flow With Negligible Pressure Drop.
Angle Type

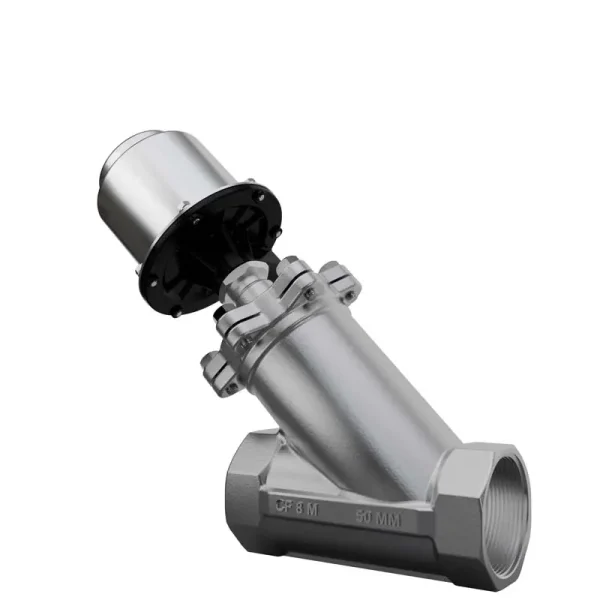

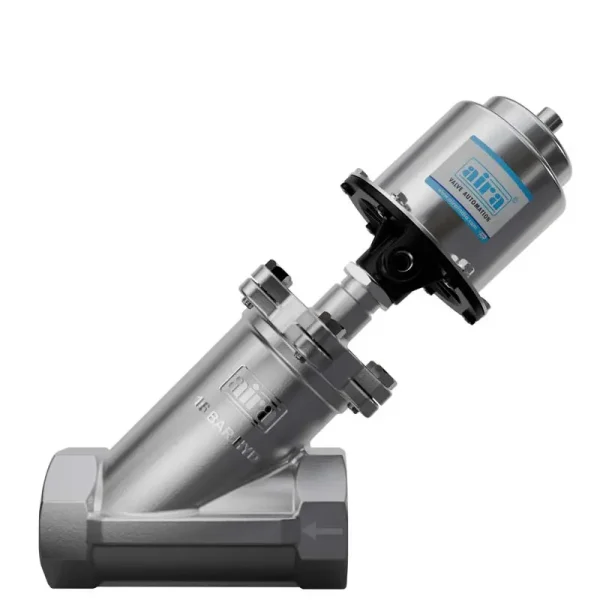

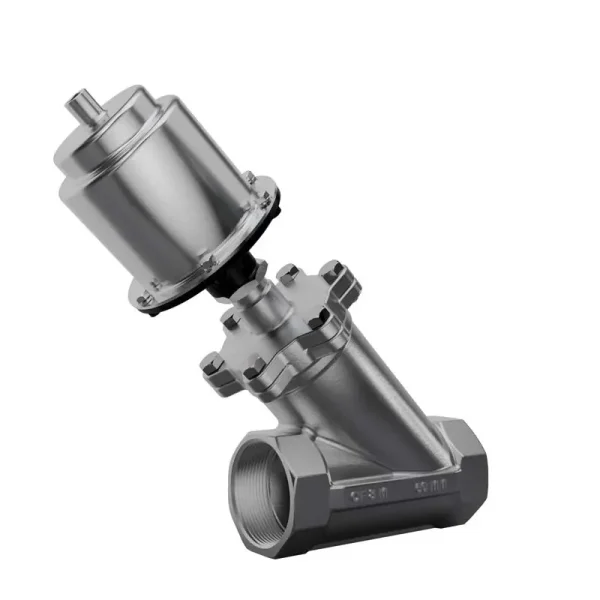

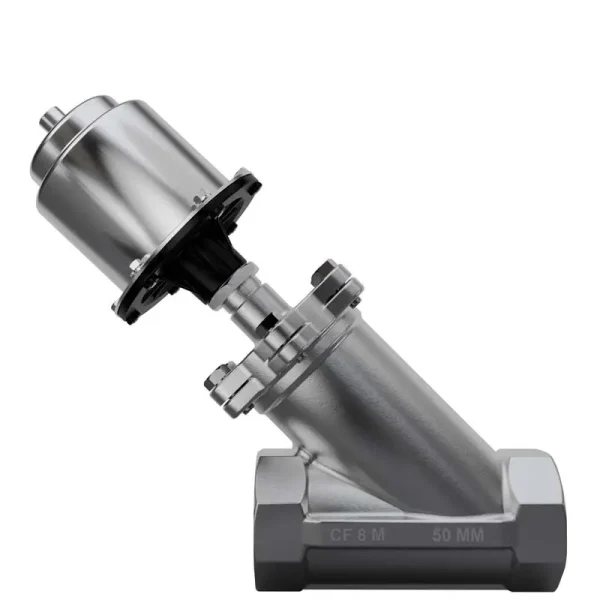

Bolted Design SS Cap Screwed Control Valve
Dimension Table



Angle Type
Bolted Design SS Cap Screwed Control Valve
Dimension Table
