Approvals

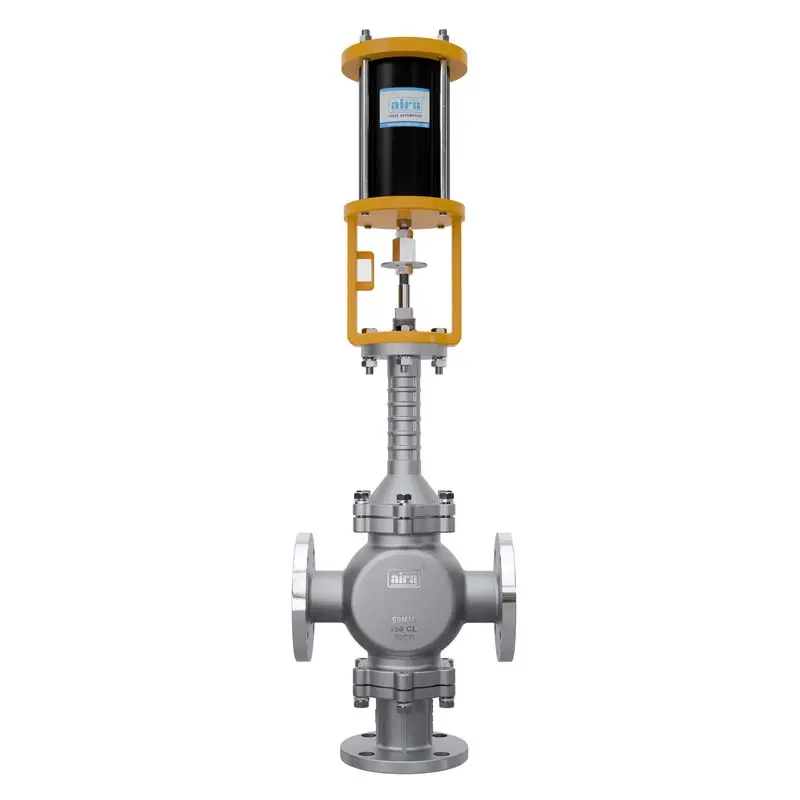

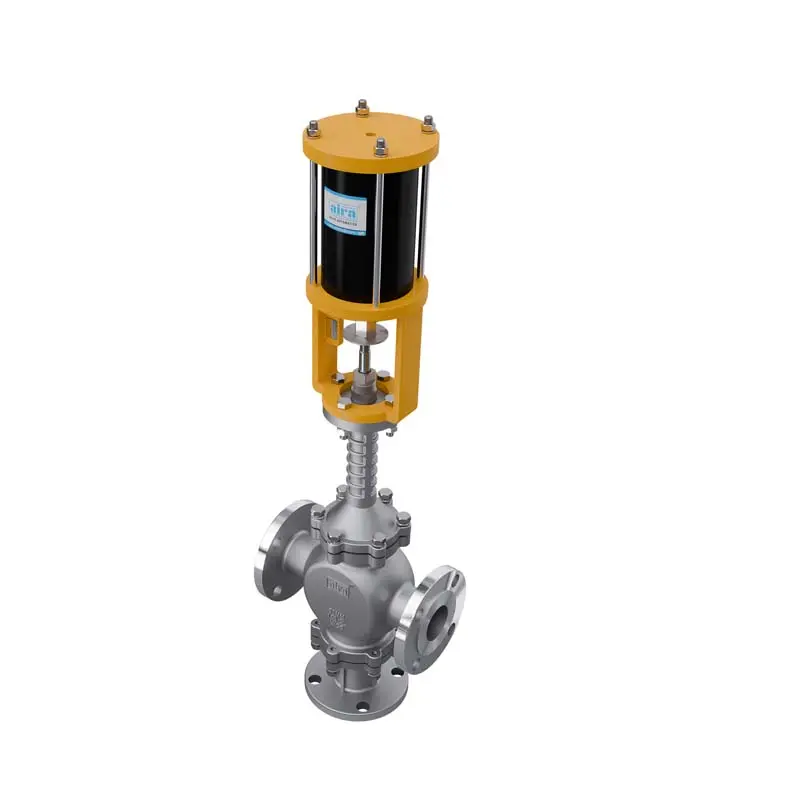

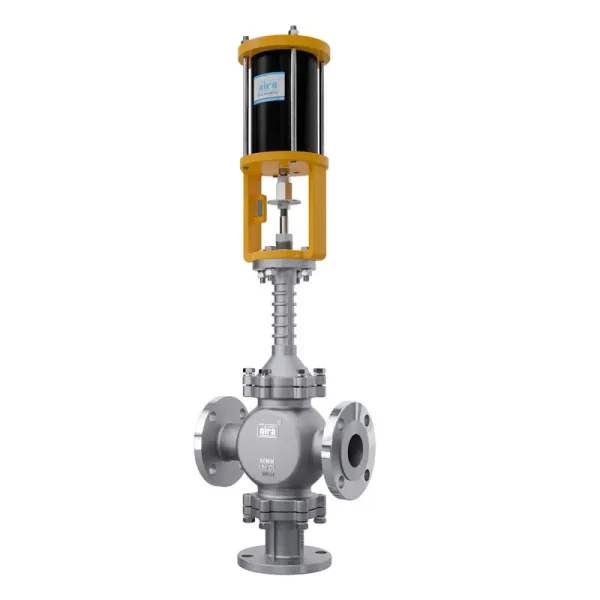

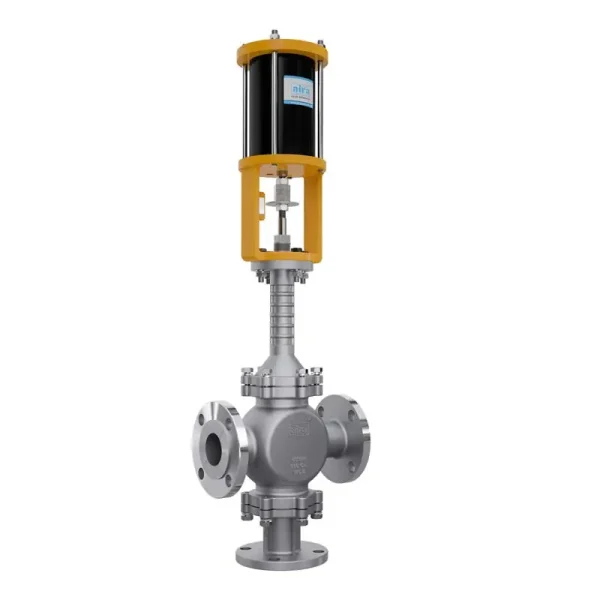

“aira” Offers 2/2 – 3/2 way pneumatic Cylinder operated control valve for thermic fluid & High Temperature Application Upto 450°C.
Specification & Standard
Size Range
15MM To 150MM
Tempreature Range
Upto 450°C Max
Shutoff Rating
Tight Shut Off Leakage Class
Body Style
Metal To Metal
Flange Drilling
150#, 300#
Certification
IBR Approved
Body Materials
WCB / CF8 / CF8M
Stem Materials
S. S - 304 / S. S - 316
Seat Materials
PTFE / CFT / GFT
Plug Materials
S. S - 304 / S. S - 316
Design Standard
BS 6697
End Connection
ASME B16.5
Testing Standard
FCI 70 - 2
Face To Face
ISA - 75.03, IEC 534 - 3
Leakage
Class IV
Applications
Steam / Gas / Water & Air
1 – Available in 2/2 and 3/2 way options.
2 – Pneumatic Cylinder Operated.
3 – Provides reliable control for directing airflow in pneumatic systems.
4 – Built for long-term use with robust construction.
5 – Allows precise control of the flow of compressed air, ideal for automation and machinery applications.
6 – Compact and efficient design for easy integration into various systems.
7 – Typically constructed from high-quality metals or durable polymers for enhanced performance.
3-2 Way Pneumatic Cylinder
High Pressure Control Valve
3-2 Way Pneumatic Cylinder
High Pressure Control Valve

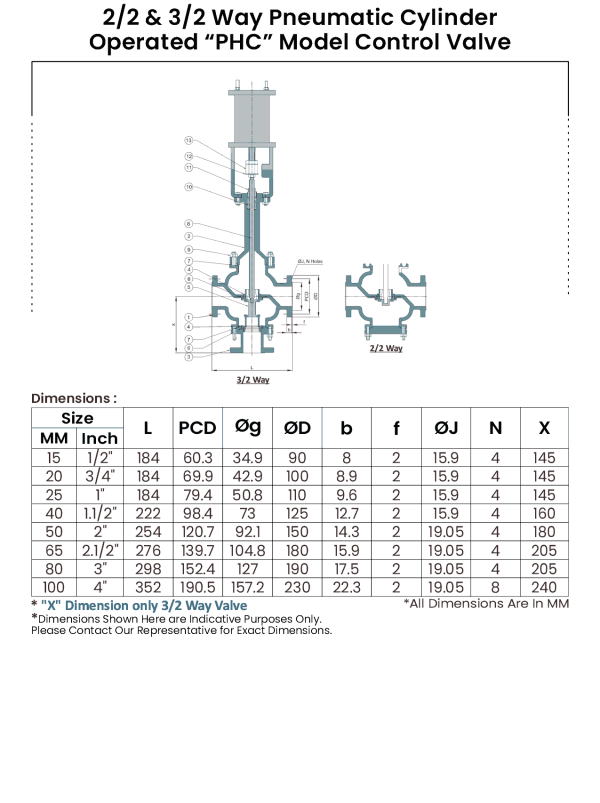

Dimension Table
