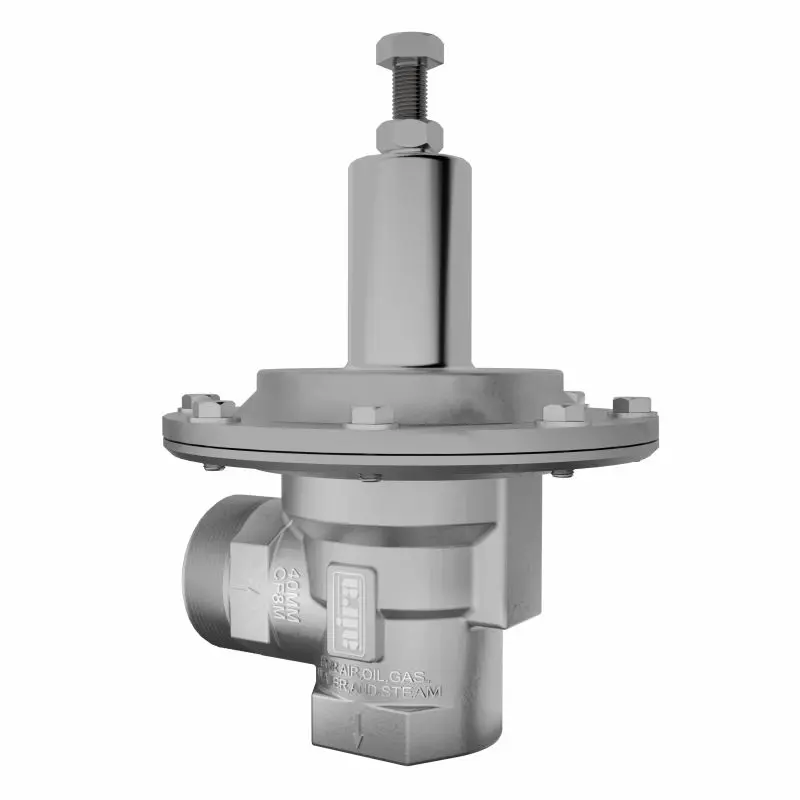

A compact, direct-acting safety valve designed for silent operation and precise pressure relief. Features a screwed connection for easy installation and maintenance. Ideal for protecting systems from overpressure in pipelines, tanks, and pressure vessels. Suitable for use in air, gas, steam, and liquid applications.
Specification & Standard
Size Range
15MM To 100MM
Temperature Range
80 °C (For Water), 180 °C (For Steam)
Max Inlet Pressure
21 BAR (High Pressure On request)
Pressure Adjusting Range
0.5 ~ 10 BAR , 10 ~ 20 BAR
Body
CF8 / CF8M
Seat
NBR / VITON
Media
Water / Gas / Air & Low Temperature oil
End Connection
Screwed End 150 Class
1 – Robust Construction: Built from high-strength materials to ensure durability and resistance to corrosion and extreme conditions.
2 – Precise Pressure Control: Designed for accurate pressure settings, providing reliable and timely activation to prevent over pressure situations.
3 – Quick Response Mechanism: Engineered to open rapidly at set pressure levels, ensuring immediate relief and enhanced safety.
4 – Compact Design: Space-efficient design allows for easy integration into various systems, making it ideal for limited spaces.
5 – User-Friendly Installation: Designed for straightforward installation and maintenance, reducing downtime and operational costs.
6 – Low Maintenance: Minimal upkeep required, ensuring long-lasting performance and reliability.
7 – Safety Assurance: Complies with international safety standards, providing peace of mind in critical applications.
Direct Activated
Silent Pressure Relief Screwed Safety Valve
Direct Activated
Silent Pressure Relief Screwed Safety Valve

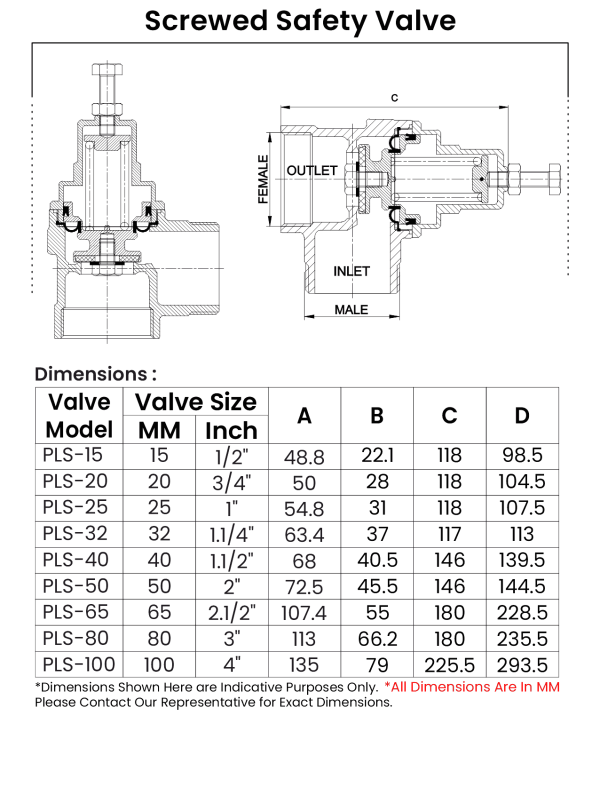

Dimension Table
