2/2 Way

High Temperature Screwed Solenoid Valve

Size Range
3/8" To 4" Screwed
Temperature Range
180°C Max. ( High Temperature On Request )
Working Pressure
0 To 5 Bar Max. ( 0 to 6 Bar On Request )
Inquiry Now

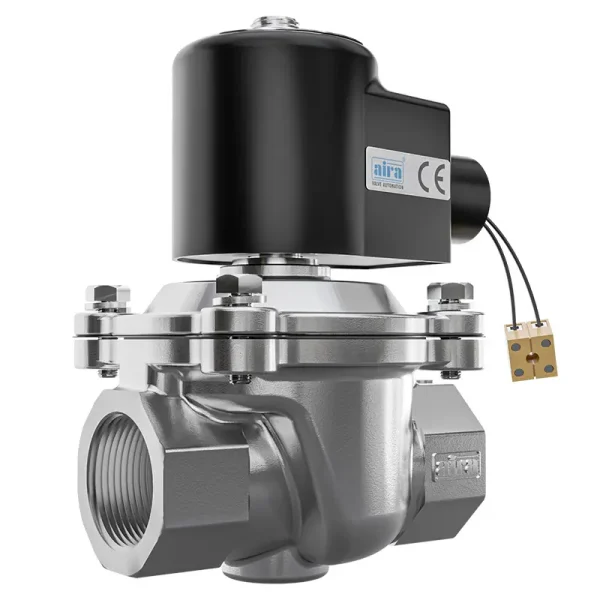

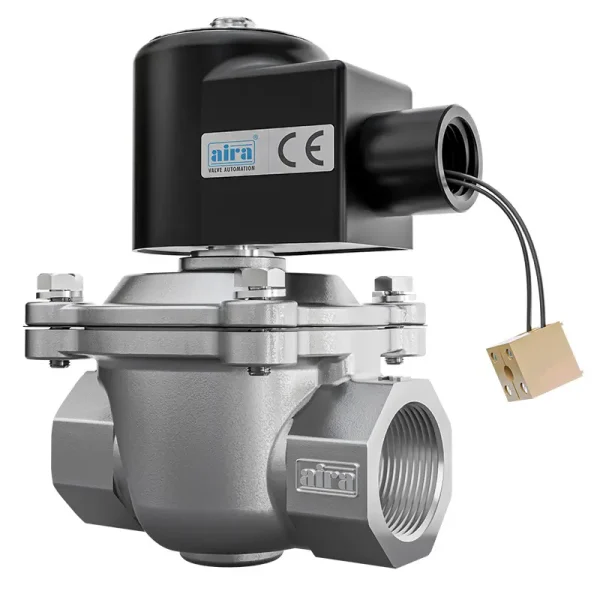

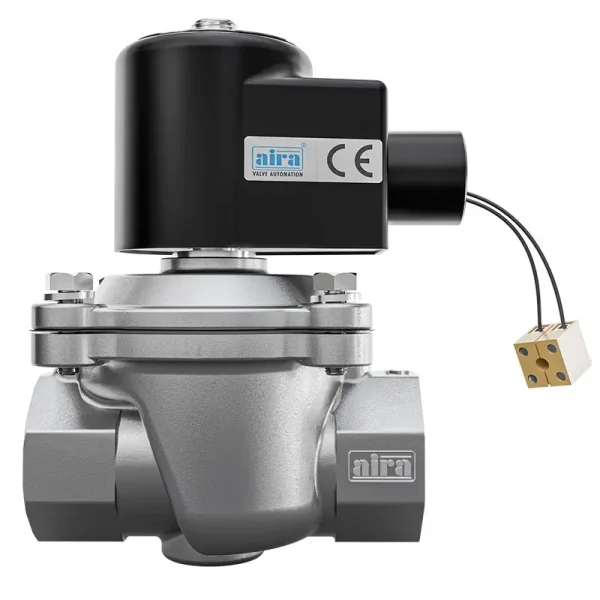

2/2 Way High Temperature Screwed Solenoid Valve

Size Range
3/8" To 4" Screwed
Temperature Range
180°C Max. ( High Temperature On Request )
Working Pressure
0 To 5 Bar Max. ( 0 to 6 Bar On Request )
Inquiry Now

Approvals

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

Size Range

3/8" To 4" Screwed

Tempreature Range

180°C Max. ( High Temperature On Request )

Pressurre Class

0 To 5 Bar Max. ( 0 to 6 Bar On Request )

End Connection

Screwed 150#

Media

Oil Plants, Vaccum Plant, Pump Seal, Water

Body Material

CF8, CF3M, CF8M

Seat Material

PTFE, Viton

Certification

CE

Features & Benefits

1 – 2/2 Way Configuration: Provides reliable on/off control with a two-port design for managing fluid flow.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to meet different operational requirements.

3 – Screwed Connections: Features threaded fittings for easy and secure installation.

4 – Automation Ready: Electrically actuated for precise and efficient automated control.

5 – Durable Construction: Built from high-quality materials like brass or stainless steel, ensuring longevity and resistance to corrosion.

6 – Compact and Robust: Designed for space efficiency while maintaining durability and performance in various environments.

7 – Versatile Fluid Compatibility: Suitable for a range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered to require minimal upkeep, reducing maintenance needs and operational costs.

9 – Fast and Reliable Switching: Offers quick response times for effective and dependable system control.

2/2 Way

High Temperature Screwed Solenoid Valve

Dimension Table

2/2 Way

High Temperature Screwed Solenoid Valve

Dimension Table
