2/2 Way

Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

Size Range
3/8" To 4" Flanged End
Temperature Range
85°C Max. (High Temperature On Request)
Working Pressure
0 To 5 BAR
Inquiry Now

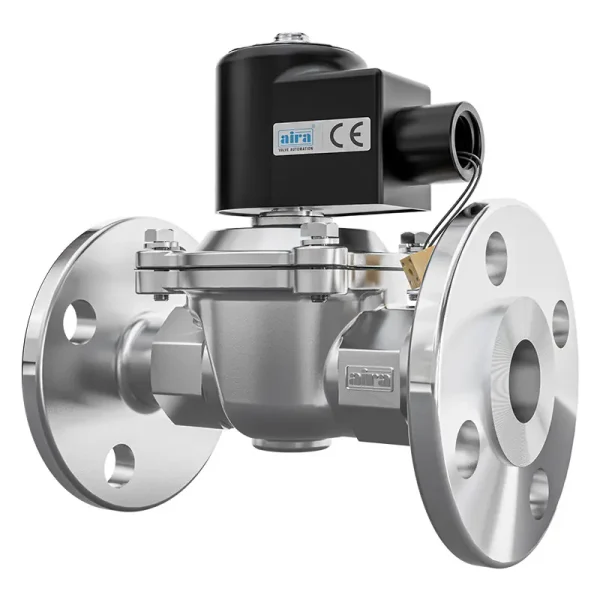

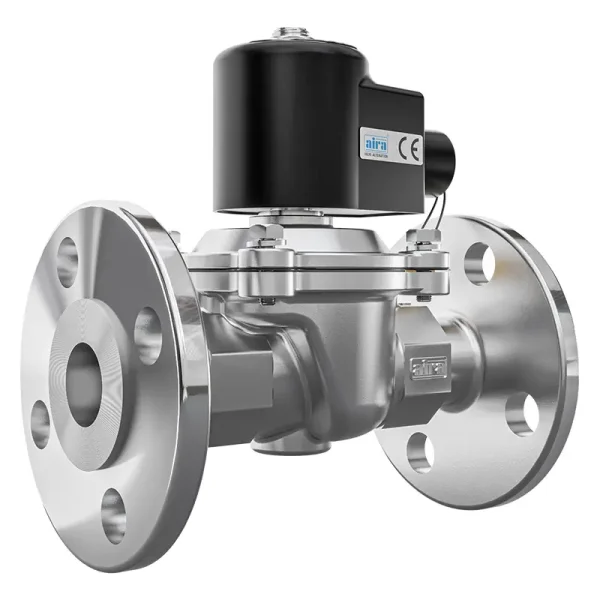

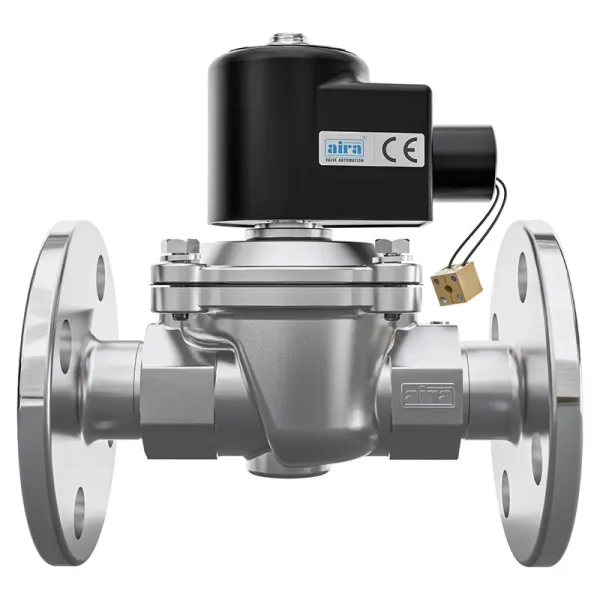

2/2 Way Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

Size Range
3/8" To 4" Flanged End
Temperature Range
85°C Max. (High Temperature On Request)
Working Pressure
0 To 5 BAR
Inquiry Now

Approvals

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

End Connection

Flanged 150#

Size Range

3/8" to 4" Flanged End

Tempreature Range

85°C Max. (High Temperature On Request)

Pressurre Class

0 To 5 BAR

Body Style

Flameproof 150#

Media

Auto Clave, Vaccum Palnts, Pump Seal Water, Low Pressure Water

Body Material

CF8, CF3M, CF8M

Seat Material

NBR, Viton, Hi-Netra

Certification

CE

Features & Benefits

1 – 2/2 Way Configuration: Provides reliable on/off control with a two-port design.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations for versatile automation needs.

3 – Flanged Connections: Features flanged fittings for robust and secure installation, ideal for high-pressure applications.

4 – Automation Ready: Electrically actuated for precise, automated control in various systems.

5 – Durable Construction: Made from high-quality materials such as stainless steel or brass for long-term reliability and resistance to corrosion.

6 – Compact and Robust: Designed to fit in demanding environments while maintaining high performance.

7 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Requires minimal upkeep, reducing operational costs and downtime.

9 – Fast and Reliable Actuation: Provides quick switching capabilities for efficient and effective system operation.

2/2 Way

Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

Dimension Table

2/2 Way

Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

Dimension Table
