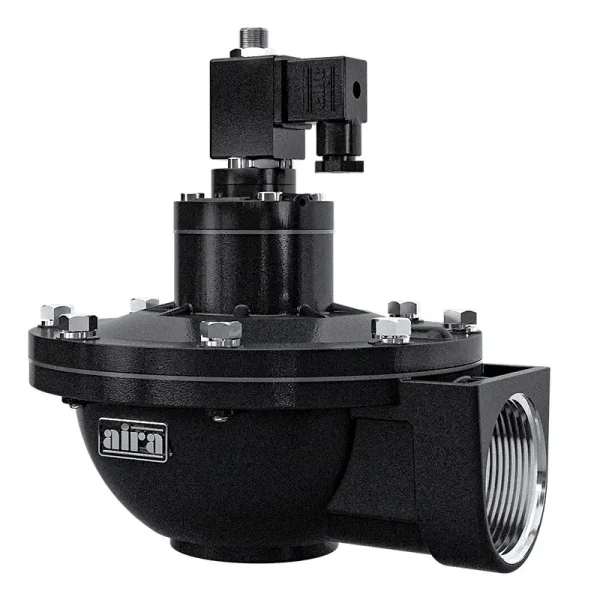

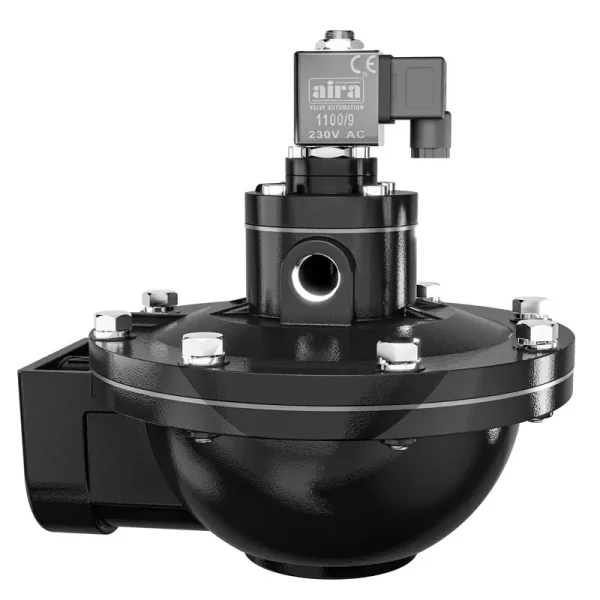

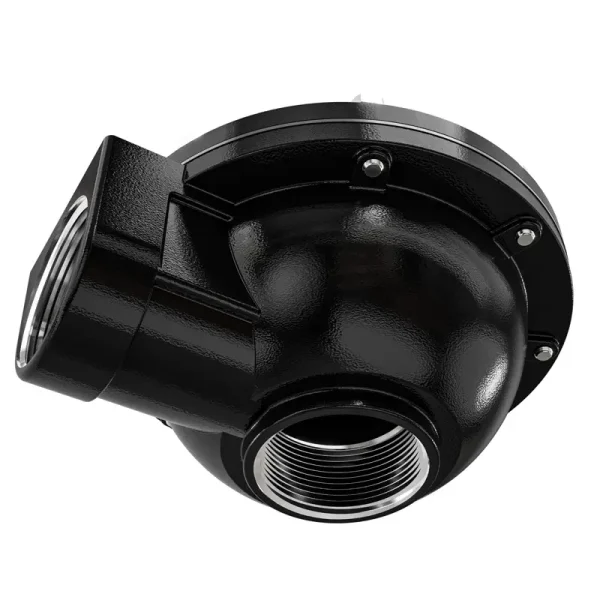

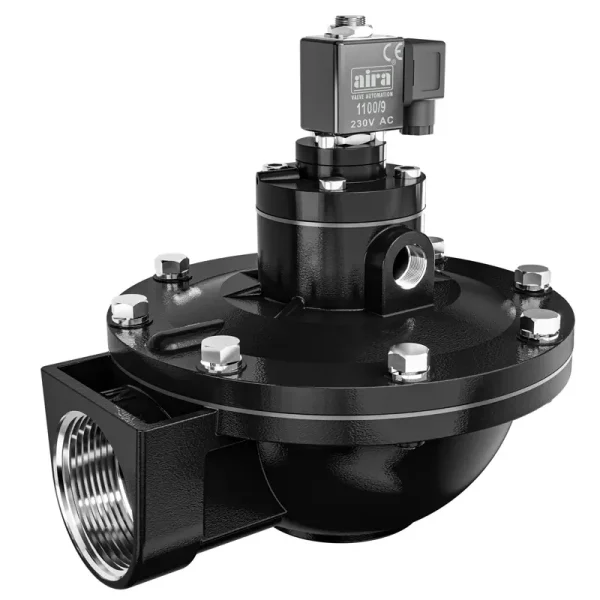

2-2 Way Angle Type Solenoid Valve

Size Range
2" To 3" Screwed
Temperature Range
Up To 80°C (High Temperature 125°C on Request)
Working Pressure
0.6 To 8.5 Kg/cm²
Inquiry Now
2-2 Way Angle Type Solenoid Valve
Download Catalogue

Approvals

Approval

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90O to inlet.

Specification & Standard

Size Range

1/2" To 3" Screwed

Tempreature Range

Up To 80°C (High Temperature 125°C on Request)

Working Pressure

0.6 To 8.5 Kg/cm²

End Connection

Screwed End

Diaphragm

NBR / Viton

Body

Aluminium

1 – Dust Collector Applications

2 – In Particular For Reverse Pulse Jet Filter Cleaning Including Bag Filter

3 – Cartridge Filters Envelope Filters

4 – Ceramic Filters & Sintered Metal Fibre Filters

2-2 Way

Angle Type Solenoid Valve

Dimension Left Dimension Right
Product Assembly

2-2 Way

Angle Type Solenoid Valve

Dimension Table

Dimension Left Dimension Right
