2/2 Way

Angle type SS Dust Collector Pulse Valve

Size Range
1" Screwed
Temperature Range
Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure
0.6 To 8.5 Bar Max
Inquiry Now

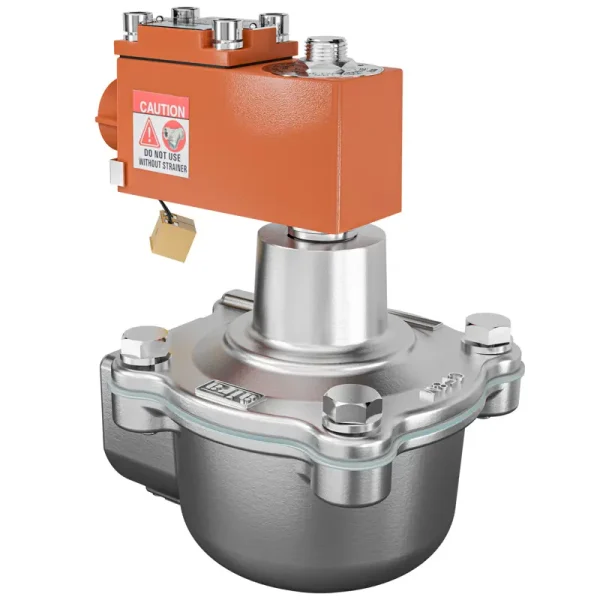

2/2 Way Angle type SS Dust Collector Pulse Valve

Size Range
1" Screwed
Temperature Range
Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure
0.6 To 8.5 Bar Max
Inquiry Now

Approvals

“aira” Stainless Steel Diaphragm Valve is designed for dust collector applications, especially for reverse pulse-jet filter cleaning of various filter types. It features a 90° inlet and outlet port, with a single diaphragm and threaded female gas connections. Ideal for aggressive environments prone to corrosion, it is suitable for chemical processes, off-shore refineries, nuclear environments, and also for pharmaceutical, food, and medical-grade applications.

Specification & Standard

Size Range

1" Screwed

Tempreature Range

Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Pressurre Class

0.6 to 8.5 Bar Max

Media

Chemical Process, Food And Grain, Off-Shot Plant

Body Material

CF8, CF8M, CF3M

Seat Material

PU

Certification

CE

Features & Benefits

1 – Designed to operate within a specific pressure range. The exact range depends on the model and its intended application.

2 – Features a solenoid coil that enables efficient and quick valve actuation.

3 – Ideal for applications where the valve needs to remain closed during normal operation and open only when the solenoid is energized. Common in automation, fluid control systems, HVAC, and other industrial processes.

4 – Typically meets industry standards and certifications to ensure quality, safety, and performance in various applications

2/2 Way

Angle type SS Dust Collector Pulse Valve

Dimension Table

2/2 Way

Angle type SS Dust Collector Pulse Valve

Dimension Table
