2/2 Way Pilot Diaphragm

Screwed Solenoid Valve

Size Range
3/4"
Temperature Range
upto 85°C
Working Pressure
0 To 5 Bar
Inquiry Now

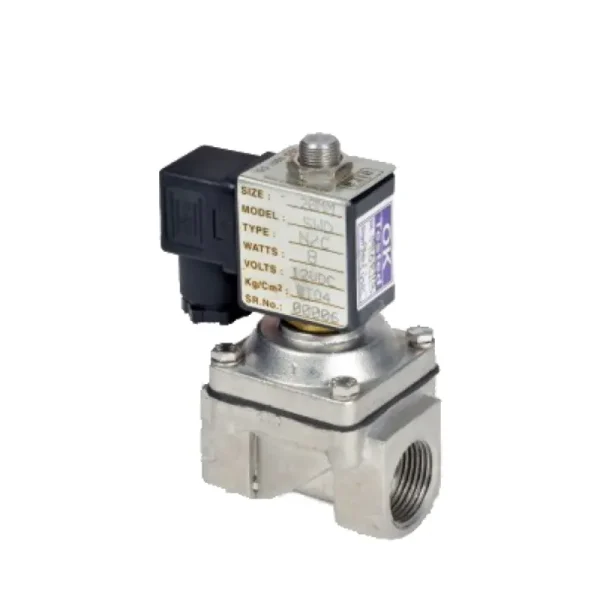

2/2 Way Pilot Diaphragm Screwed Solenoid Valve

Size Range
3/4"
Temperature Range
upto 85°C
Working Pressure
0 To 5 Bar
Inquiry Now

“aira” Offers 2/2 Way Pilot Diaphragm Solenoid Valve is a compact, electrically controlled valve that uses a solenoid to actuate a diaphragm mechanism, opening or closing two pathways. It features a pilot-controlled design for precise flow regulation and is commonly used in fluid control systems for applications requiring quick and reliable switching.

Specification & Standard

Design

Normally Close

Body

CF8 / CF8M

Size Range

3/4"

Diaphragm

NBR

Ends

Screwed End (BSP)

Coil Voltage

12V, 24V, 48V, 110V, 230V, AC/DC

Size Range

3/4"

Temperature

upto 85°C

Pressure

0 To 5 Bar

Coil Insulation

“F” Class

Media

Air, Gas, Water, Steam & Hot Water

Features & Benefits

1 – Space – Saving And Easy To Install In Various Applications 2 – Utilizes A Small Pilot Solenoid To Control The Larger Main Valve, Providing Precise Control 3 – Employs A Diaphragm To Seal The Valve, Ensuring Reliable Operation And Minimal Leakage 4 – Made With High – Quality Materials To Ensure Long – Lasting Performance 5 – Suitable For A Wide Range Of Fluids And Gases In Various Industrial Processes

Get in touch with our team at +91 9099477256 to receive the Dimension Table
