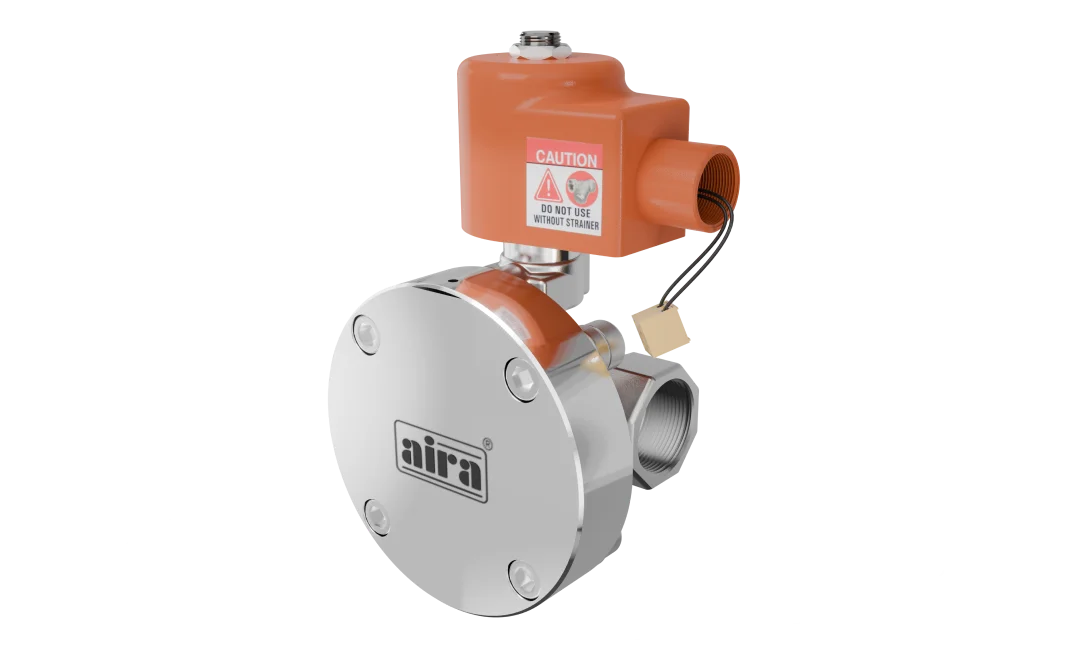

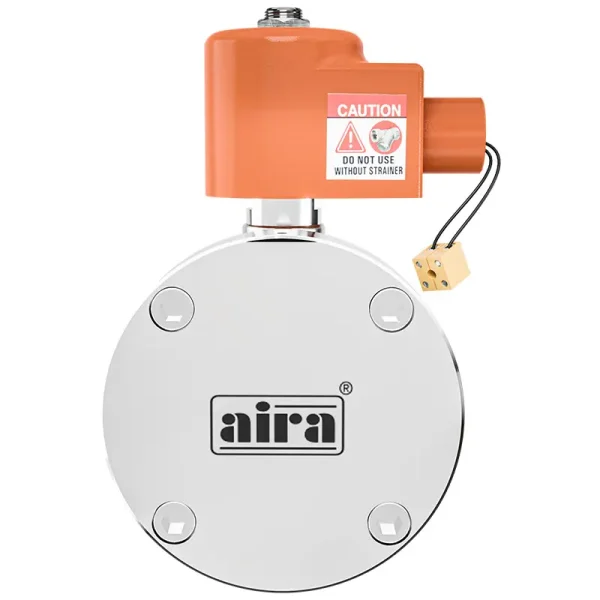

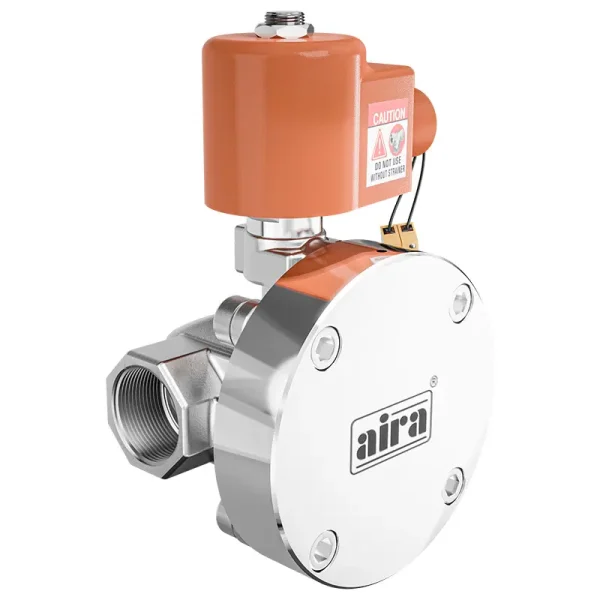

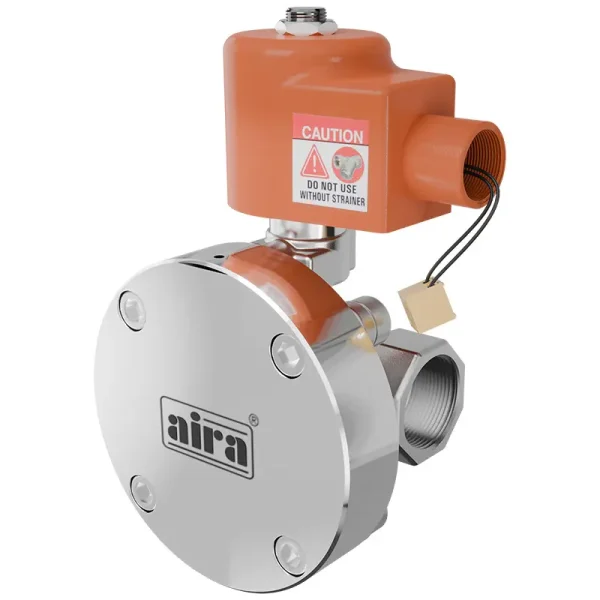

2-2 Way High Pressure Piston Screwed Solenoid Valve

Size Range
1/4" To 2" Screwed
Temperature Range
-5°C To 85°C (Upto 120°C On Request)
Working Pressure
2 To 110 Bar

Approvals

Approval

“aira” Features screwed connections for secure installation, offering reliable on/off control with durable construction for various fluid applications.

Specification & Standard

Size Range

1/4" To 2" Screwed

Tempreature Range

-5°C To 85°C (Upto 120°C On Request)

Pressurre Class

2 To 110 Bar

End Connection

Screwed

Media

Hot Water / LD Oil / Air / Water / Corrosive Media

Body Material

CF8, CF3M, CF8M

Seat Material

PTFE, Viton, PEEK

Certification

CE

1 – 2/2 Way Design: On/off control with a two-port configuration for managing fluid flow.

2 – Normally Closed: Default position is closed when de-energized, opening only when actuated.

3 – Screwed Connections: Threaded fittings ensure secure and straightforward installation.

4 – Durable Construction: Made from high-quality materials like brass or stainless steel for long-lasting performance and resistance to corrosion.

5 – Compact and Efficient: Designed to fit in space-constrained environments while maintaining high performance.

6 – Versatile Fluid Compatibility: Suitable for a range of fluids, including air, water, and chemicals.

7 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance needs and operational costs.

2-2 Way

High Pressure Piston Screwed Solenoid Valve

Dimension Left Dimension Right
Product Assembly

2-2 Way

High Pressure Piston Screwed Solenoid Valve

Dimension Table

Dimension Left Dimension Right
