“aira” Offers Automation And Manually Operated Metal Seated Floating Ball Valve Designed For Using In The Several Conditions Such As High Temperature & High Friction Fluids Of Oil & Gas, Petroleum, Petrochemical, Chemical Power Generation, Pulp & Paper, Mining Industry.
Specification & Standard
Basic Design
API 6D/ BS EN 17292
Face To Face Dimensions
API 6D/ ASME B 16.10 - 300#
End Connection
ASME B 16.5
Port Diameter
API 6D/ BS EN 17292
Size Range
2" to 20" Flanged
Temperature Range
PTFE : Upto 180°C
Pressure Class
300#
Stem Material
AISI 410 , SS 304 , SS 316, SS 304l, SS 316l , DUPLEX 2205, DUPLEX 2507, MONEL
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Wall Thickness
ASME B16.34/ BS EN 17292/ BS EN-12516-2
Fugitive Emission Testing
ISO 15848-1
Fire Safe Testing
API 607 7th Edition
Media
Air/ Water/ Oil & Gas
Body Material
WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON, INCONEL, LCB
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Solid Trunnion Mounted Ball Valve 300#
Flange Drilling
Asme B 16.5 Class 300#
Certification
Design CE Approved, POD, SIL 3, Fire Safe, EIL, IBR Approved
1- Most Popular & Reliable Valve For Isolation & Shut Down Application.
2- Structure : 2 Piece & 3 Piece Bolted Body, Connector & Bonnet.
3- Block & Bleed / Double Block & Bleed Function.
4- Inherently No Pressure Drop.
5- Locking Provision & Position Of Obturator.
6- Stem Extension.
7- Lifting Lugs.
8- QSL-2 / QSL-3 / QSL-3G / QSL-4 / QSL-4G.
3 Piece

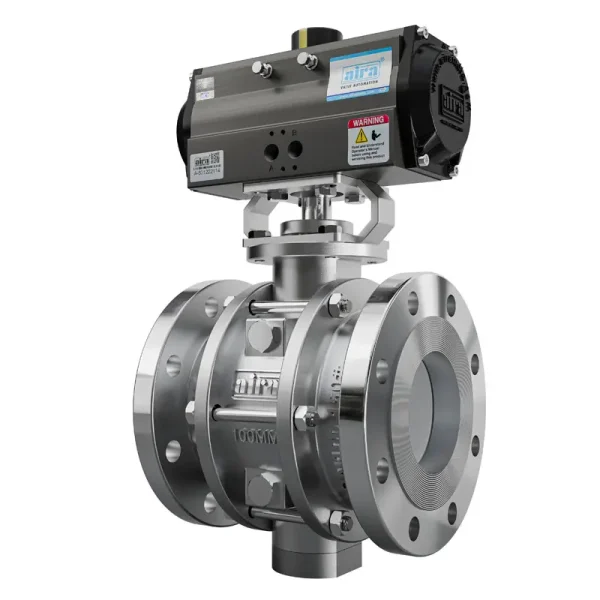

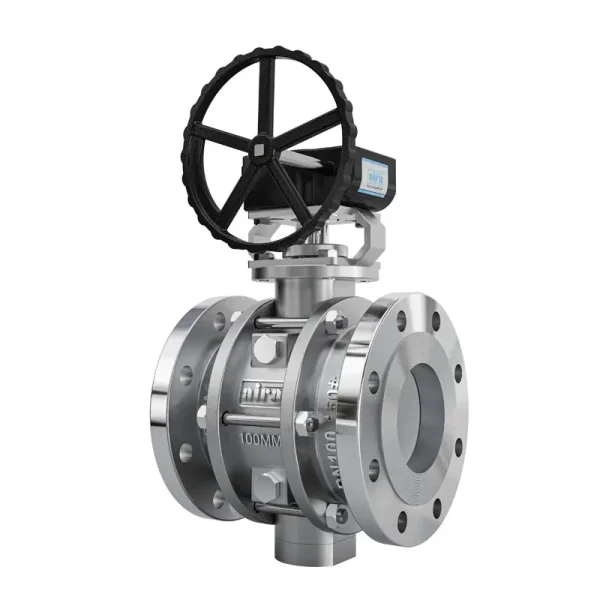

Internal Trunnion Mounted Ball Valve 300#
3 Piece

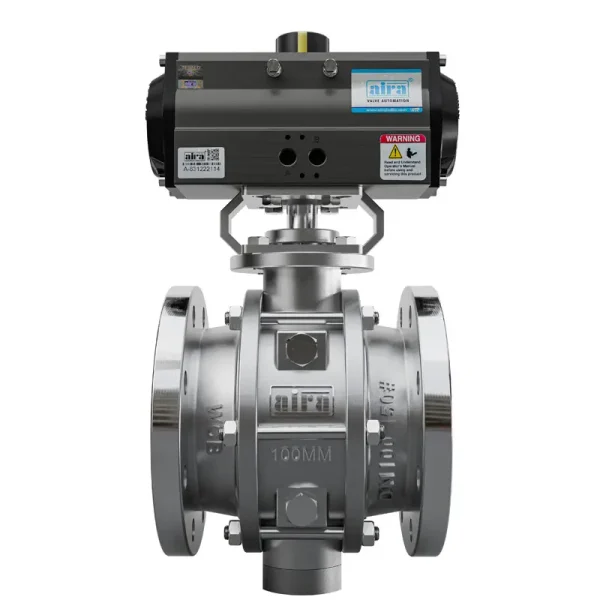

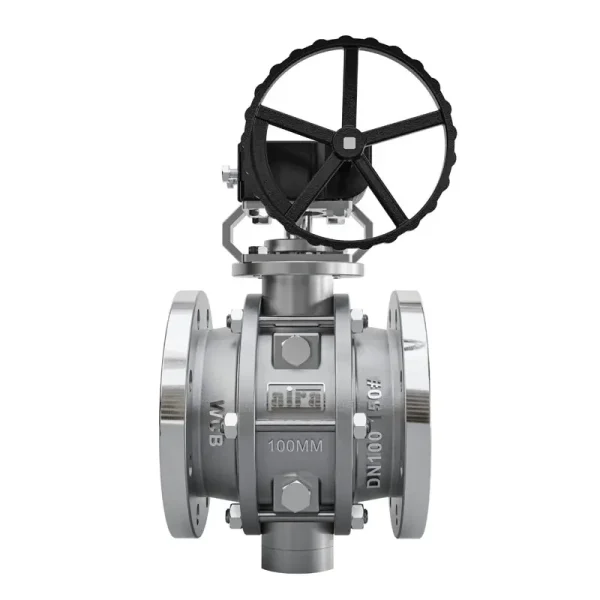

Internal Trunnion Mounted Ball Valve 300#
Dimension Table
