4 Way Multi Port

Flanged End Ball Valve

Size Range
1/2" To 14" Flanged 150#
Temperature Range
PTFE : Upto 180°C/ RPTFE : Upto 220°C/ AIRA250°C
Working Pressure
As Per Pressure Class
Inquiry Now

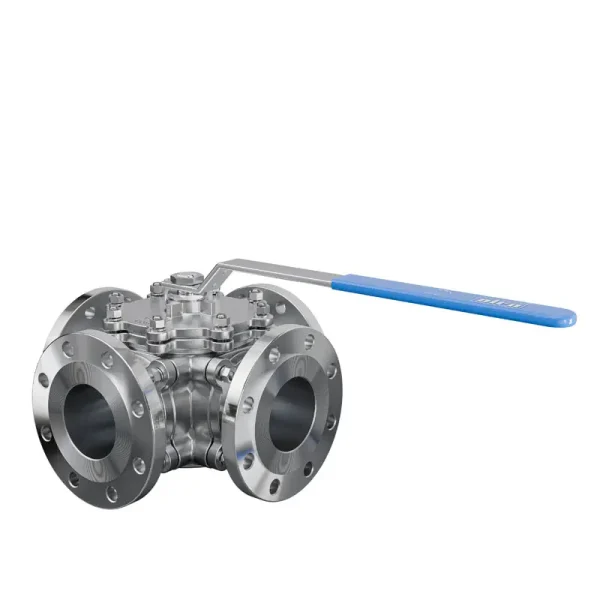

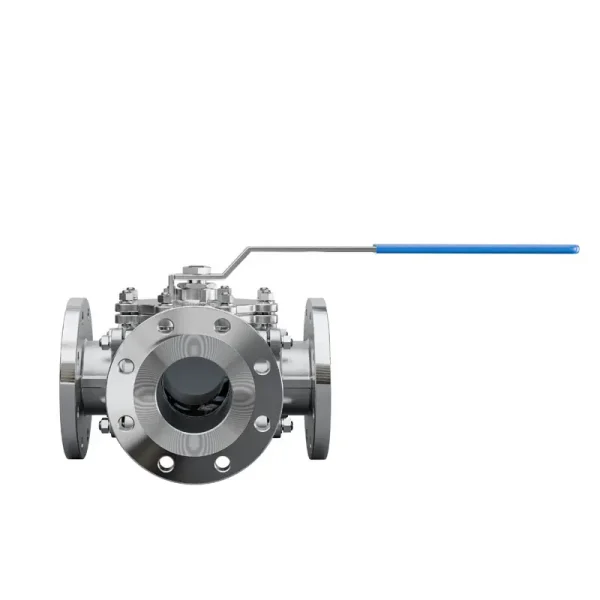

4 Way Multi Port Flanged End Ball Valve

Size Range
1/2" To 14" Flanged 150#
Temperature Range
PTFE : Upto 180°C/ RPTFE : Upto 220°C/ AIRA250°C
Working Pressure
As Per Pressure Class
Inquiry Now

Approvals

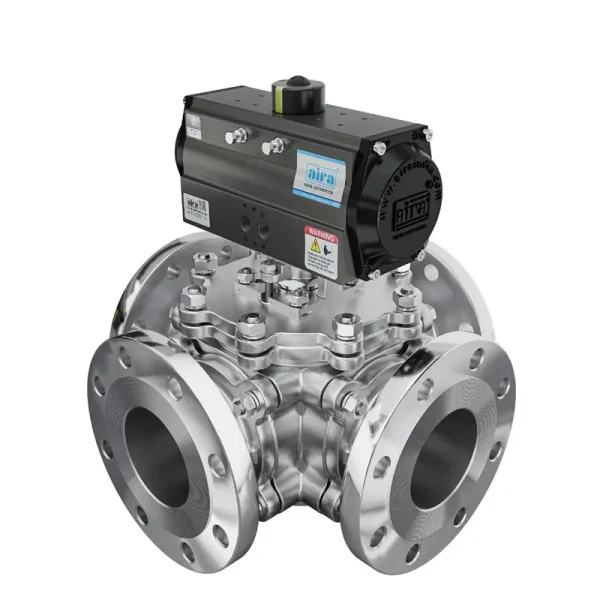

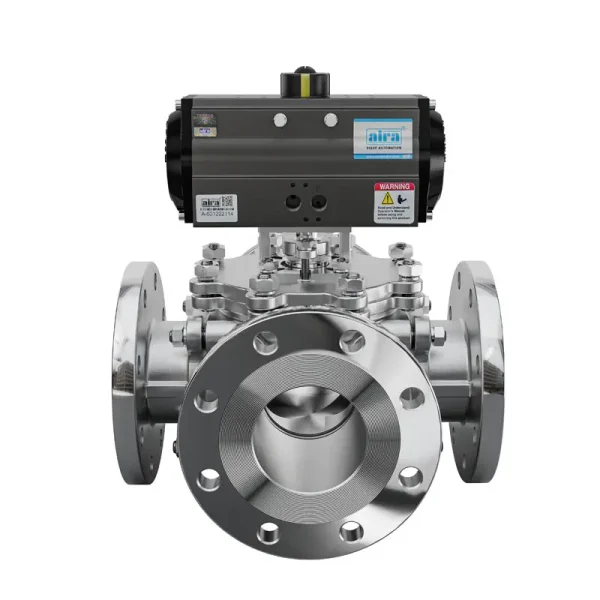

“aira” Offers Pneumatic Rotary Actuator Operated “3,4 & 5 Way” Multi Port Design Investment Casting CF8/ CF8M/ WCB Trunnion Mounted Ball Valve, Engineered For Multiple Diverting / Mixing Operations In The Down Stream. Type : “T” Port/ “L” Port/ “X” Port In Full Bore/ Reduce Bore.

Specification & Standard

Design & Manufacturer

ASME B 16.34 BS/ EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturing

Inspection And Testing

API 598/ ISO-5208/ BS EN 12266-1

Flange Standard Conformity

ASME B 16.5 Class 150 And 300

End Connection

Flanged End

Size Range

1/2" To 14" Flanged 150#

Temperature Range

PTFE : Upto 180°C/ PEEK : 250°C RPTFE : Upto 220°C/ AIRA250°C

Pressurre Class

150#/ 300#

Media

Air/ Water/ Oil & Gas

Body Material

WCB, CF3, CF8, CF8M, CF3M, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON

Ball Material

CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX

Ball Type

Hollow/ Solid Ball

Stem Material

CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH

Flange Drilling

ASME B 16.5 Class 150#/ 300#

Certification

Design CE Approved, POD, Fire Safe Design

Features & Benefits

1 – Antistatic Design.

2 – Locking Handle Available.

3 – High Performance Ball Valve.

4 – ISO 5211 Mounting.

5 – Quick In Action.

6 – Blow Outproof Stem.

7 – High Cycle Life.

Fire Safe Design

Anti Static Mechanism

Direct Mounting As Per ISO 5211

4 Way Multi Port

Flanged End Ball Valve

Dimension Table

4 Way Multi Port

Flanged End Ball Valve

Dimension Table
