3 Piece

Triclover End Ball Valve

Size Range
1/4" To 4"
Temperature Range
PTFE : Upto 180°C/ PEEK : 250°/ RPTFE : Upto 220°C/ AIRA250
Working Pressure
As Per Pressure Class
Inquiry Now

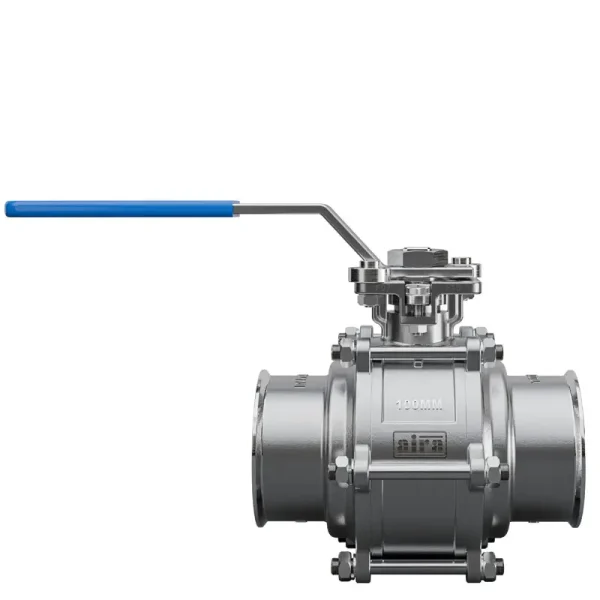

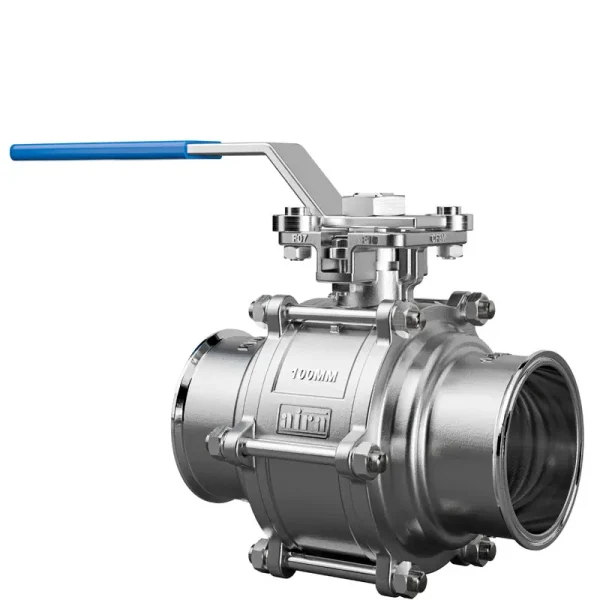

3 Piece Triclover End Ball Valve

Size Range
1/4" To 4"
Temperature Range
PTFE : Upto 180°C/ PEEK : 250°/ RPTFE : Upto 220°C/ AIRA250
Working Pressure
As Per Pressure Class
Inquiry Now

Approvals

Aira Euro Make Hand lever operated “3 Piece Design CE APPROVED” 2 Way Ball Valve with Triclover Ends with PTFE Seals.

Specification & Standard

Design & Manufacturer

ASME B16.34/ BS EN ISO 2852

Valve Face To Face Dimension

As Per Manufacturing

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/4" To 4"

Tempreature Range

-25' C 180' For Soft Seated Valves. Contact Works For Special Requierment -195', -45', +300', (on Request)

Pressurre Class

150#

Stem Material

AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ B16.104, ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)

End Connection

Tri-clover Ends

Media

Air/ Water/ Oil & Gas

Body Material

CF8, CF8M, CF3M, SS 304L, DUPLEX

Ball Material

.CF8, CF8M, HAST ALLOY, DUPLEX, CF3M

Ball Type

Solid

Certification

Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Aprroved

Features & Benefits

1 – High Cycle Life.

2 – Antistatic Design & Fire Safe Design As Per API 607.

3 – Blow Outproof Stem.

4 – Locking Handle Available.

5 – ISO 5211 Mounting Pad Available.

6 – V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousand Of Cycle.

Anti Static Mechanism

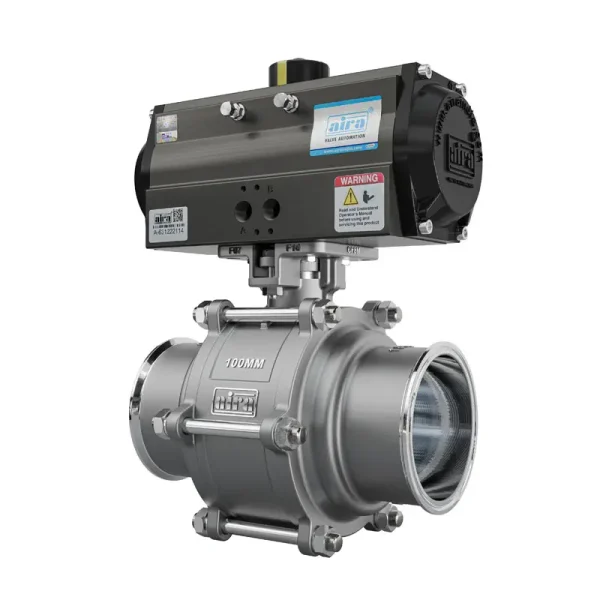

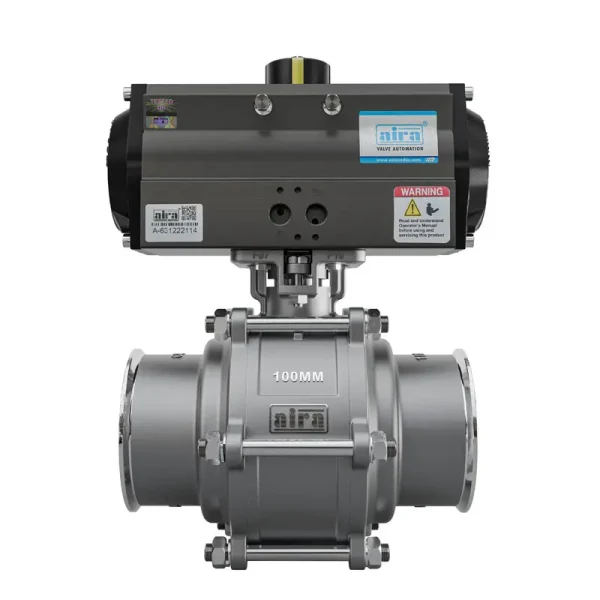

Direct Mounting As Per ISO 5211

3 Piece

Triclover End Ball Valve

Dimension Table

3 Piece

Triclover End Ball Valve

Dimension Table
