C Way Multi Port

Flanged End Ball Valve

Size Range
1/2" To 8” Flange End 150#
Temperature Range
PTFE : Upto 180°C/ RPTFE : Upto 220°C/ AIRA250°C
Working Pressure
As Per Pressure Class
Inquiry Now

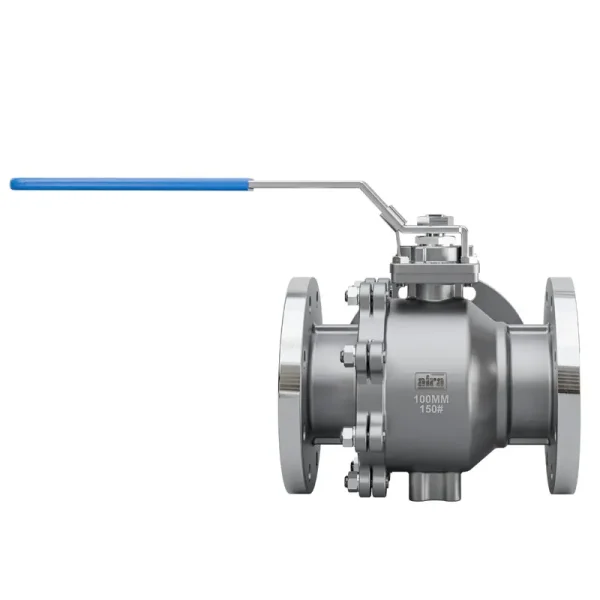

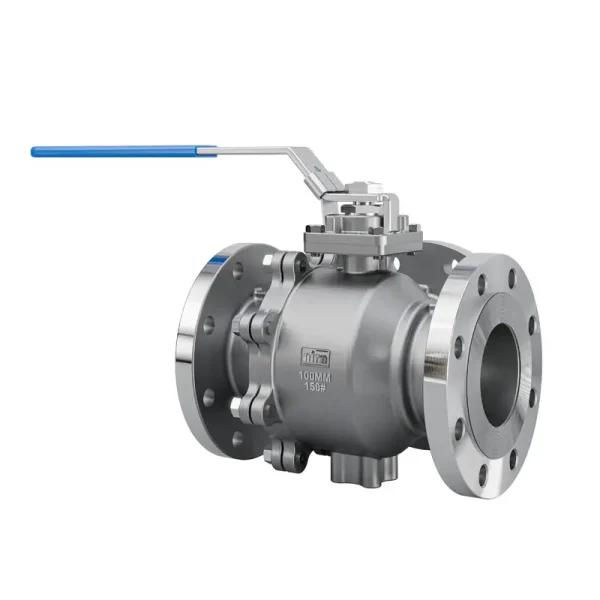

C Way Multi Port Flanged End Ball Valve

Size Range
1/2" To 8” Flange End 150#
Temperature Range
PTFE : Upto 180°C/ RPTFE : Upto 220°C/ AIRA250°C
Working Pressure
As Per Pressure Class
Inquiry Now

Approvals

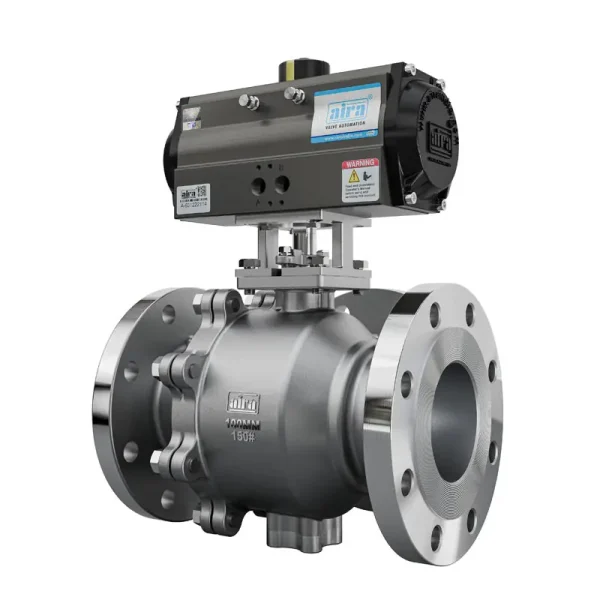

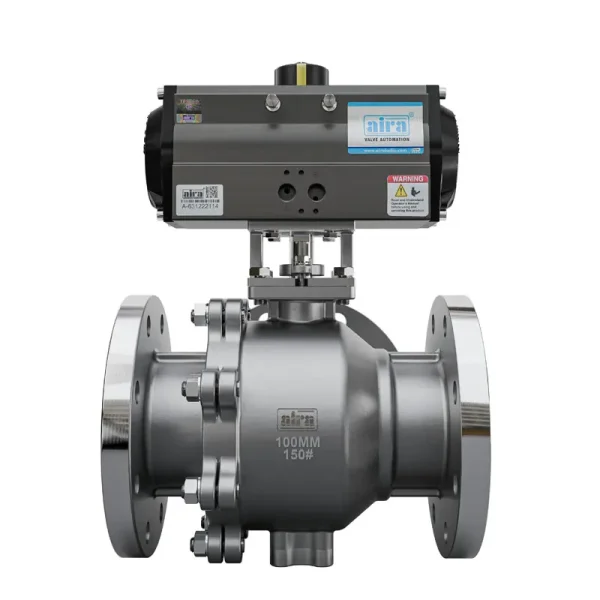

“aira” Offers 5211 Mounting Standard Pneumatic Rotary Actuator Operated 2 – Piece “C” Way Trunnion Mounted Ball valve, Ideal For Multiple On/Off Operations. Its 3 Way Side Entry Design Allows For Diverting And Mixing Flow Patterns, Potentially Replacing Two Valves. Available In T – Port and L – Port Configurations With 2 – Seat Options, It Supports Various Pressures And Temperatures, Making It Suitable For Industries Such As Chemical, Oil & Gas.

Specification & Standard

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturing

Inspection And Testing

API 598/ ISO - 5208/ BS EN 12266 - 1

Flange Standard Conformity

ASME B16.5 Class 150

End Connection

ASME B16.5 CLASS 150 For Flange End

Size Range

1/2" To 8” Flange End 150#

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Pressurre Class

150#

Media

Air/ Water/ Oil & Gas

Body Material

WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON

Ball Material

CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX

Ball Type

Hollow/ Solid Ball

Stem Material

CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH

Seat Material

PTFE, RPTFE, MODIFIED PTFE, AIRA-250

Flange Drilling

ASME B16.5 Class 150#

Certification

Design CE Approved, Fire Safe, POD

Features & Benefits

1 – High Performance Ball Valve.

2 – Antistatic Design.

3 – ISO 5211 Mounting Pad Available.

4 – Low Pressure Drop.

5 – Longer Life.

6 – Thousand OF Cycle.

7 – V-Type Cheuron Gland Packing, Which Leads To Zero Leak After.

8 – mixing and diverting.

Fire Safe Design

Anti Static Mechanism

Direct Mounting As Per ISO 5211

C Way Multi Port

Flanged End Ball Valve

Dimension Table

C Way Multi Port

Flanged End Ball Valve

Dimension Table
