Angle Type

Plastic Cap Flanged Control Valve

Size Range
15MM To 80MM
Temperature Range
PTFE 180°C / CFT 220°C
Working Pressure
Upto 10 BAR
Inquiry Now

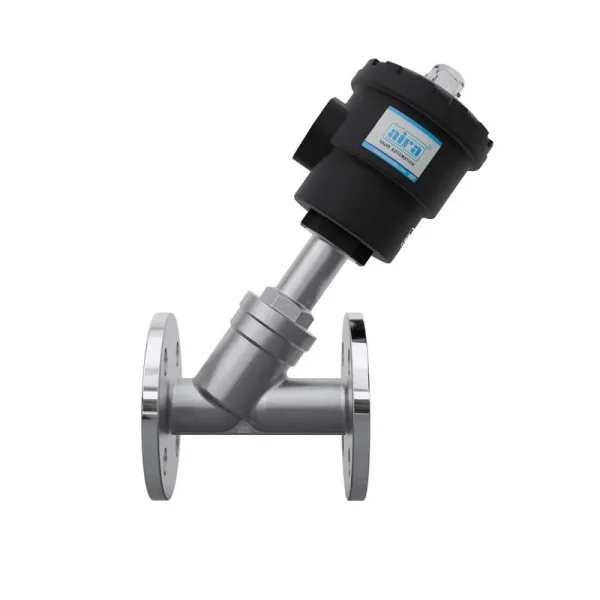

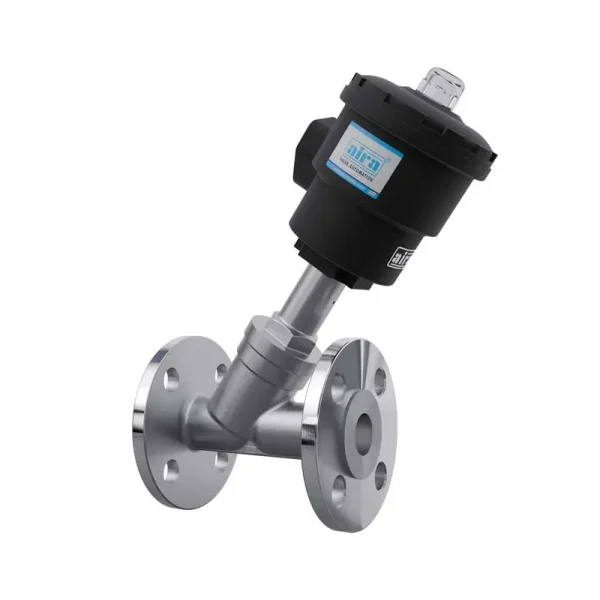

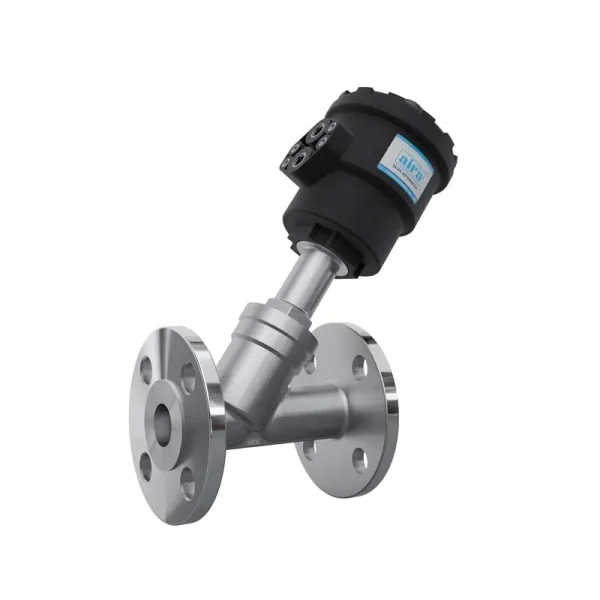

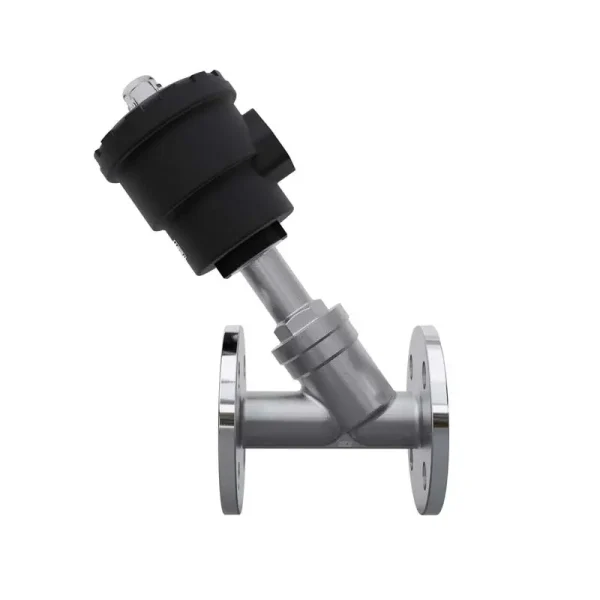

Angle Type Plastic Cap Flanged Control Valve

Size Range
15MM To 80MM
Temperature Range
PTFE 180°C / CFT 220°C
Working Pressure
Upto 10 BAR
Inquiry Now

Approvals

“aira” Offers 2/2 Way Pneumatic Actuator Operated Investment Casting Angle Type Controls Valve. It has two working types, Double Acting & Single Acting

Specification & Standard

Size Range

15MM To 80MM

Tempreature Range

PTFE 180°C / CFT 220°C

Pressurre Class

Upto 10 BAR

Shutoff Rating

Tight Shut off

Body Style

Y - Body - Screw End, Flange End, Triclover End

Flange Drilling

150#

Certification

CE Approved

Body Materials

S. S - 304, S. S - 316

Stem Materials

PTFE

Seat Materials

GFT

Plug Materials

S. S - 304

Design Standard

Manufacture - Standard

Testing Standard

API - S98, PN10

Face To Face

Manufacture - Standard

Leakage

As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight

Applications

Air / Water / Oil / Gas / Steam & Chemical

Features & Benefits

1 – Light Weight Actuator.

2 – Suitable For High Cycle Duties.

3 – Good Control Characteristics.

4 – Available With Electro Pneumatic Positioners.

5 – Namur Mounting Pad For Easy Mounting Of Solenoid Valve.

6 – Double Acting / Single Acting Valve ( NO / NC ).

7 – Position Indicators Standard In All Valves.

Angle Type

Plastic Cap Flanged Control Valve

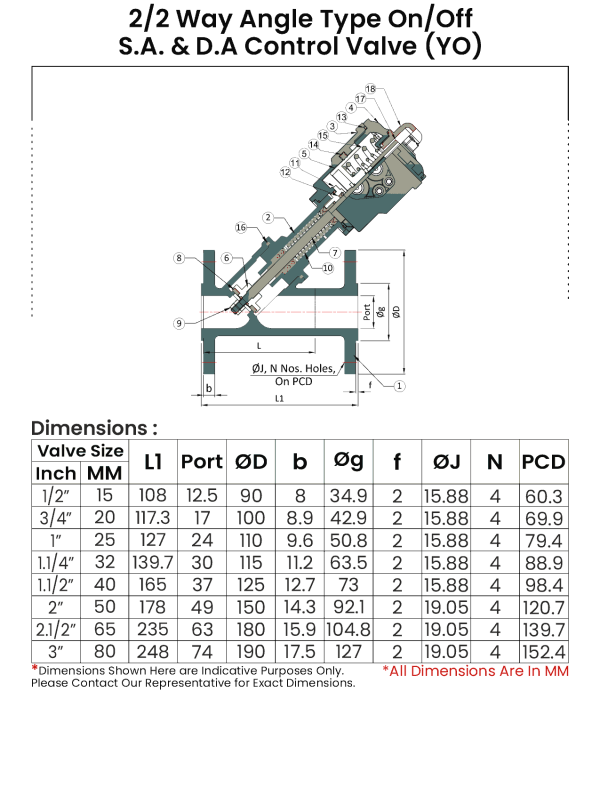

Dimension Table

Angle Type

Plastic Cap Flanged Control Valve

Dimension Table
