Bi Directional

Knife Edge Gate Valve

Size Range
50MM To 300MM
Temperature Range
Upto 200°C
Working Pressure
Min.5 Bar-max.10 Bar
Inquiry Now

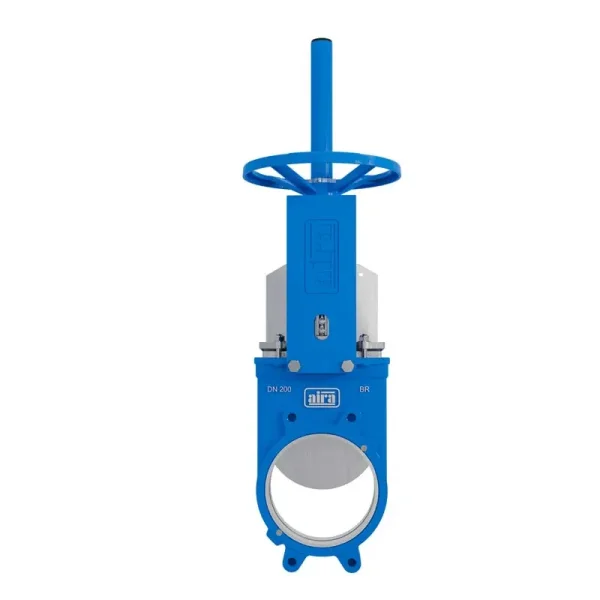

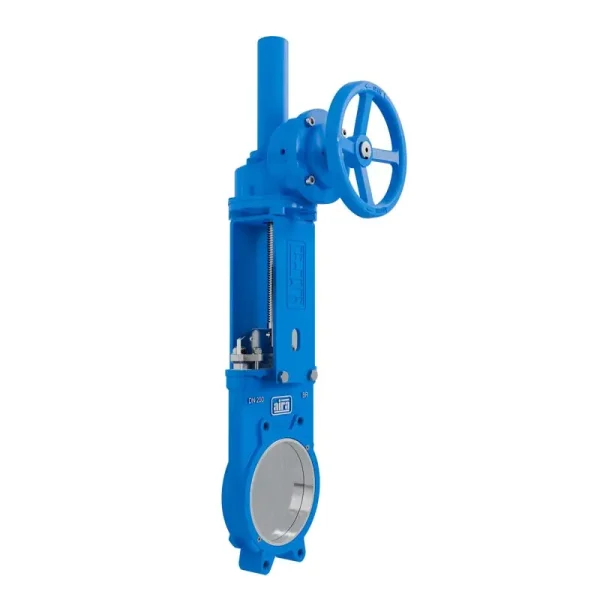

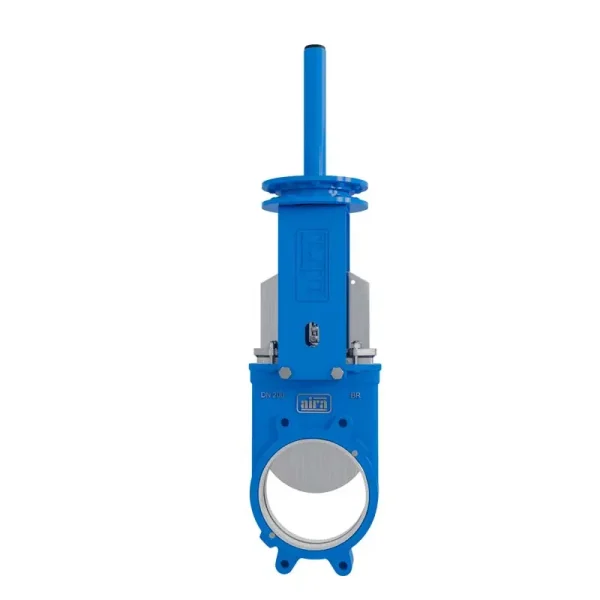

Bi Directional Knife Edge Gate Valve

Size Range
50MM To 300MM
Temperature Range
Upto 200°C
Working Pressure
Min.5 Bar-max.10 Bar
Inquiry Now

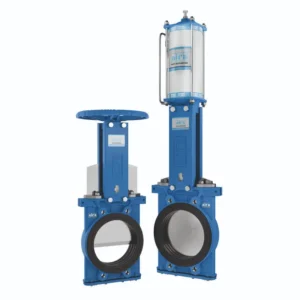

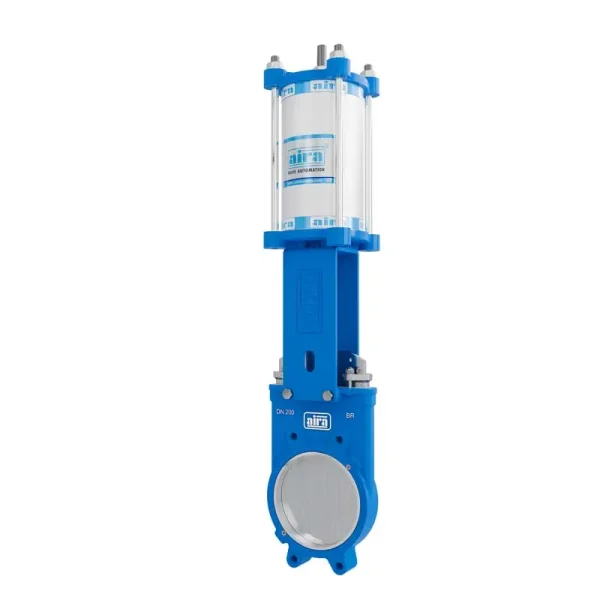

“aira” Our bi-directional knife edge gate valve, operated by a pneumatic cylinder, ensures precise flow control and reliability in demanding applications. Engineered for durability and efficiency, it excels in handling clean media such as water, oil, solvents and air. Trust aira for advanced valve solutions that meet industrial needs.

Specification & Standard

Size Range

50MM To 300MM

Temperature Range

Upto 200°C

Pressure Class

Min.5 Bar-max.10 Bar

Design & Manufacturer

MSS SP - 81

Valve Face To Face Dimension

MSS SP - 81

Inspection & Testing

MSS SP - 81

Body Material

C.I / S.G.I / D.I / WCB

Disc Material

SS 304 / SS 316 / SS 316L / SS 310 / DUPLEX 2205

Seat Material

NBR / EPDM / VITON / PTFE

Body Style

Single Pc, Semi Lug and Wafer Type

Flange Drilling

ANSI B 16.5 (150#) EN 1092 - 2 PN 10

Leakage Class

Class - VI

Media

Mining & Mineral Processing, Pulp & Paper, Cement, Water, Sugar, Carbon Black, Material Handling, Fossil Fuel Power

Features & Benefits

1 – STEM : The standard stainless steel stem offers a long corrosion resistant life. For rising stem handwheel actuators only, a stem protector is provided for additional protection against dust while the valve is in the open position.

2 – GATE : Standard AISI 304 stainless steel gate. The gate is polished on both sides for a greater seal between the gate with both packing and seat. The gate is fully guided in the body allowing for bi-directional service. The material of the gate can be changed on request for higher pressure requirements.

3 – PACKING : Standard PTFE impregnated synthetic fiber (st) with EPDM O-ring for better shut off, with an easy access packing gland ensuring a tight seal. Long-life braided packing is available in a wide range of materials.

4 – SEAT : (RESILIENT) : Completely new design sleeve, slotted in the top half to allow the gate travel. guaranteeing full fitness with low friction. The sleeve is held by means of two seat rings which support it and also guide the gate. The resilient seat is an elastomer
sleeve, also available in different materials.

5 – YOKE OR ACTUATOR SUPPORT : Made of EPOXY coated steel (stainless steel available on request). Compact design makes it extremely robust even under the most severe conditions.

6 – BODY : Wafer-style cast monoblock faces and reinforcing ribs in large diameters for extra body strength. Full part design for greater flow capacity and minimal pressure drop. The internal body design avoids any accumulation of solids that would prevent the valve from closing.Flush ports may be added to allow for the cleaning of solids trapped within the body cavities that can obstruct the flow or prevent the valve from closing (purging can be made with air, steam, liquids, etc)These bi-directional knife gate valves are not suitable for dead-end service without a slight modification or acounter flange. please contact the Technical Department at aira.

7 – EPOXY COATING : The epoxy coating on all “aira” cast iron & carbon steel valve bodies and components is applied by means of an electrostatic process, making the valves corrosion-resistant with a high quality finished surface. The “aira” standard color is RAL-5015 blue.



Bi Directional

Knife Edge Gate Valve

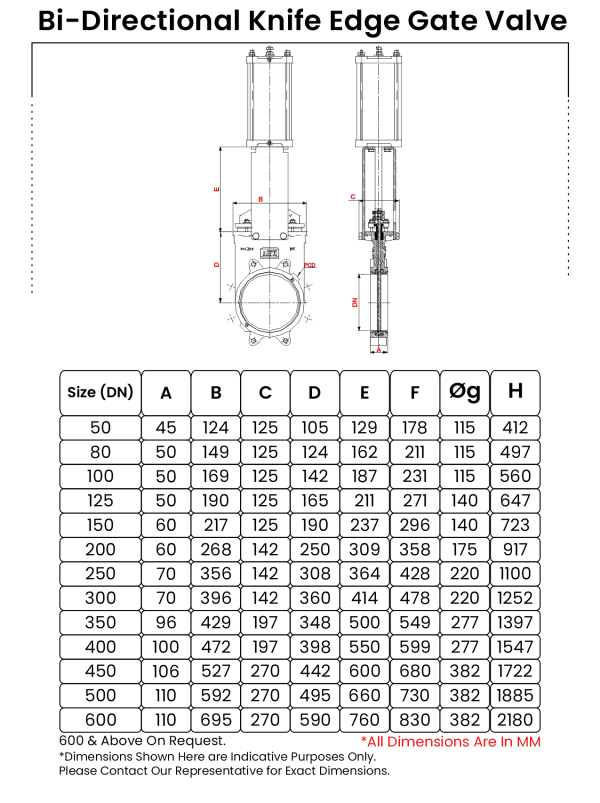

Dimension Table

Bi Directional

Knife Edge Gate Valve

Dimension Table
