Double Offset

Metal With Grafoil Laminated Seated Double Flanged Butterfly Valve

Size Range
12" To 60" (200MM To 1500MM)
Temperature Range
Upto 600°C
Working Pressure
PN10
Inquiry Now

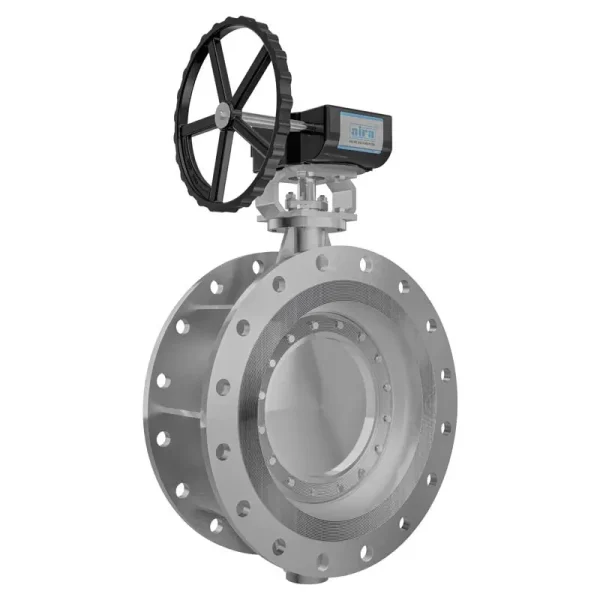

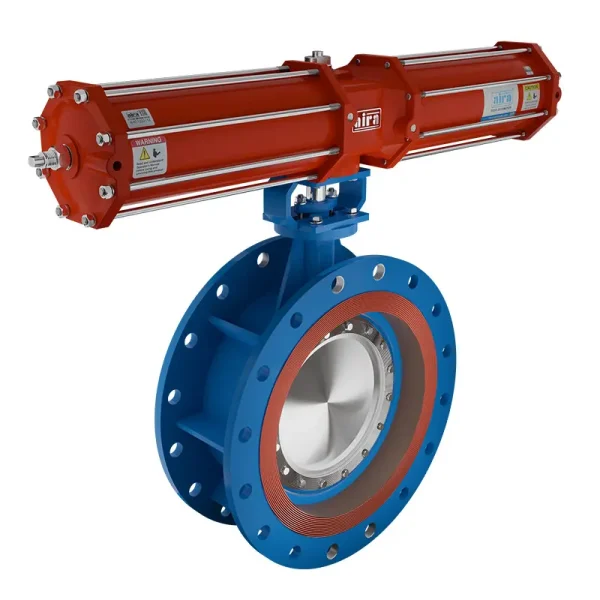

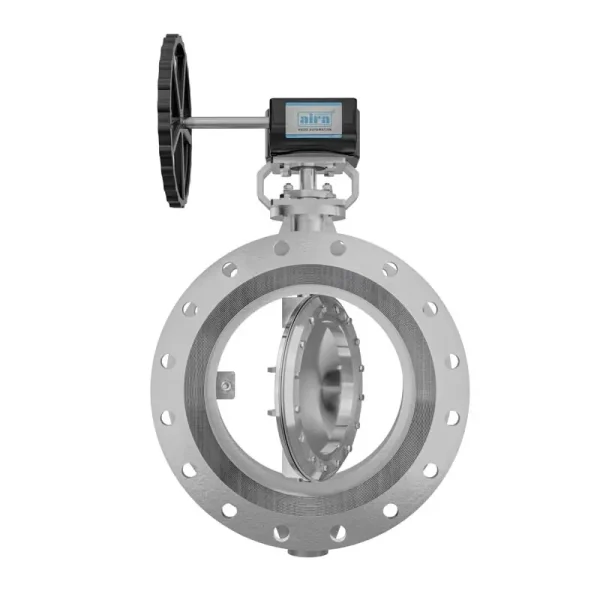

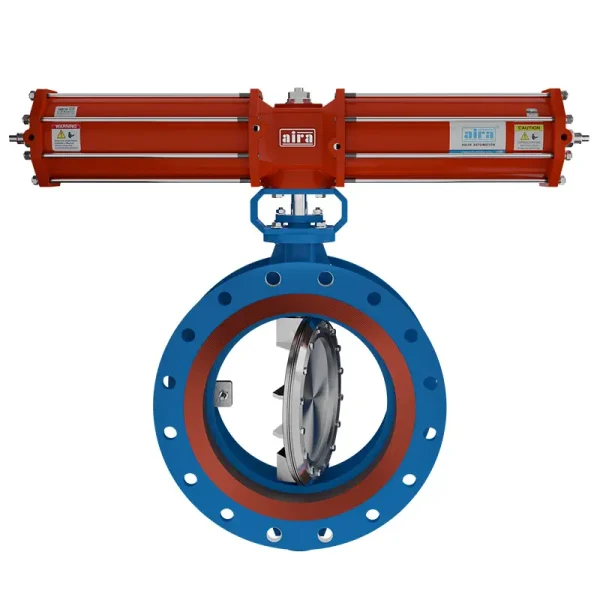

Double Offset Metal With Grafoil Laminated Seated Double Flanged Butterfly Valve

Size Range
12" To 60" (200MM To 1500MM)
Temperature Range
Upto 600°C
Working Pressure
PN10
Inquiry Now

Approvals

“aira” Offers Double Offset Metal Butterfly Valve with Grafoil Laminated Seat and Double Flanged Construction offers robust performance with its metal body and Grafoil seat for high-temperature and high-pressure applications. The double offset design enhances sealing and reduces friction, while the double flanged construction ensures secure, stable installation. This valve is ideal for demanding environments requiring durable, reliable flow control.

Specification & Standard

Size Range

12" To 60" (200MM To 1500MM)

Temperature Range

Upto 600°C

Working Pressure

PN10

Shutoff Rating

Tight Shutoff

Body Style

Double Flange

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

M.S, SS 304 / 316

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

SS 304 / 316

Disc Materials

M.S / SS 304 / 316

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C 504

Testing Standard

API 598, BSEN - 12266-1, AWWA C 504

Face To Face

API - 609, BSEN 558, AWWA C 504 / 516

Features & Benefits

1 – Double Offset Design: Reduces friction and wear, providing enhanced sealing and extended valve life.

2 – Metal Construction: Ensures durability and strength, suitable for high-pressure and high-temperature applications.

3 – Grafoil Laminated Seat: Offers superior resistance to high temperatures and pressures, ensuring a tight, reliable seal.

4 – Double Flanged Construction: Provides secure, stable installation and alignment in piping systems.

5 – Versatile Application: Ideal for demanding environments, including chemical processing, power generation, and industrial systems.

6 – Low Maintenance: Designed for minimal upkeep while delivering consistent, dependable performance.

Double Offset

Metal With Grafoil Laminated Seated Double Flanged Butterfly Valve

Dimension Table

Double Offset

Metal With Grafoil Laminated Seated Double Flanged Butterfly Valve

Dimension Table
