WKT Tripple Offset

Wafer Type Butterfly Valve

Size Range
2.1/2" To 48" (65MM To 1200MM)
Temperature Range
Upto 220°C
Working Pressure
PN 16
Inquiry Now

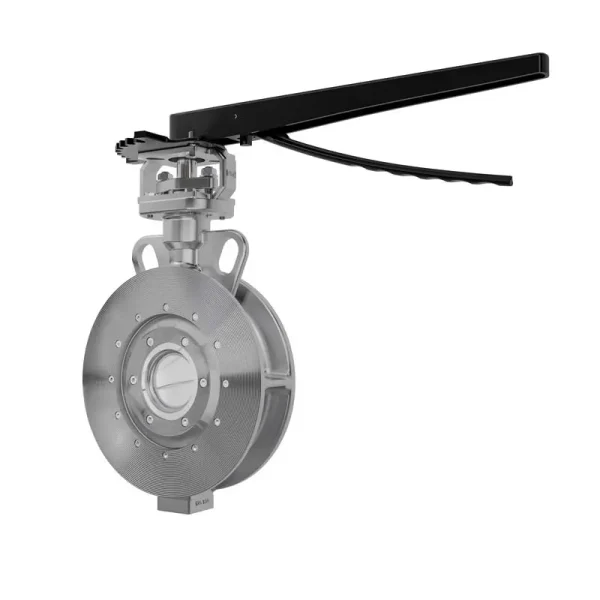

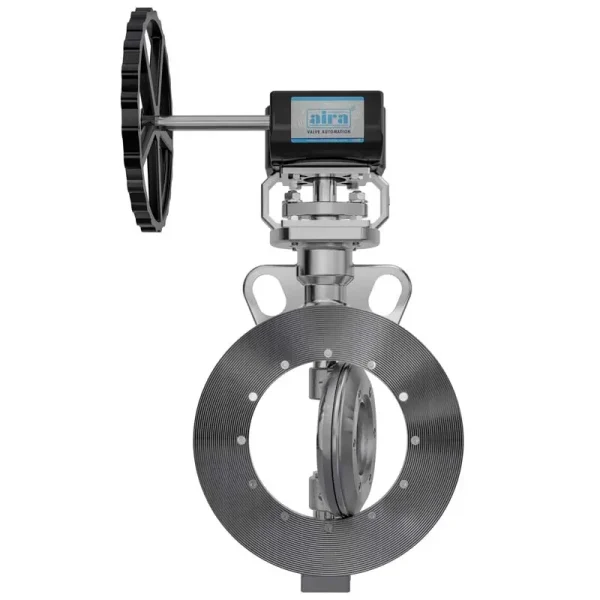

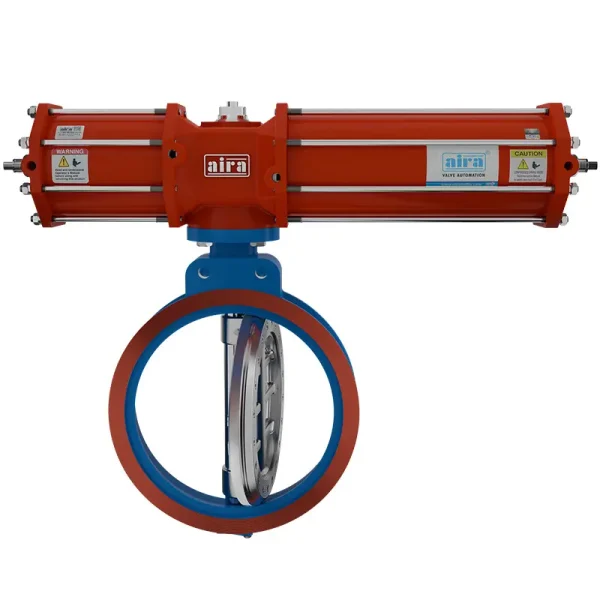

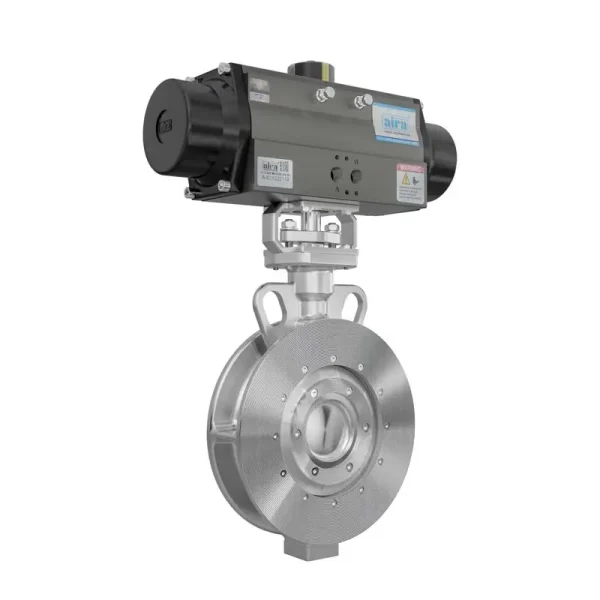

WKT Tripple Offset Wafer Type Butterfly Valve

Size Range
2.1/2" To 48" (65MM To 1200MM)
Temperature Range
Upto 220°C
Working Pressure
PN 16
Inquiry Now

Approvals

“aira” Offers Triple Offset Wafer Type Butterfly Valve delivers superior sealing and durability with its advanced triple offset design. This valve minimizes friction and wear, ensuring reliable performance and extended service life. Its wafer-type construction allows for straightforward installation between flanges, making it a versatile choice for demanding industrial applications.

Specification & Standard

Size Range

2.1/2" To 48" (65MM To 1200MM)

Tempreature Range

Upto 220°C

Pressurre Class

PN 16

Shutoff Rating

Tight Shut Off

Body Style

Wafer Type

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316LSS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C - 504

Testing Standard

API 598 / BSEN - 12266-1 / AWWA C - 504

Face To Face

API - 609 / BSEN 558 / AWWA C - 504 / 516

Features & Benefits

1 – Triple Offset Design: Enhances sealing performance and extends valve life by reducing friction and wear.

2 – Precision Engineering: Provides a tight, reliable shutoff, even under high pressure and temperature conditions.

3 – Wafer Type Construction: Simplifies installation between flanges, offering space-saving and flexibility.

4 – Durable Materials: Built to withstand harsh industrial environments and ensure long-term reliability.

5 – Versatile Application: Suitable for a wide range of fluids, including water, chemicals, and gases.

6 – Low Maintenance: Designed for minimal upkeep and dependable operation over time.

Direct Mounting As Per ISO 5211

Get in touch with our team at +91 9099477256 to receive the Dimension Table
