Fabricated

Double Flanged Damper Valve

Size Range
8" To 80" (200 MM To 2000 MM)
Temperature Range
Upto 450 °C ( 400°C Upto 850°C On Request )
Working Pressure
5 Kg / Cm²
Inquiry Now

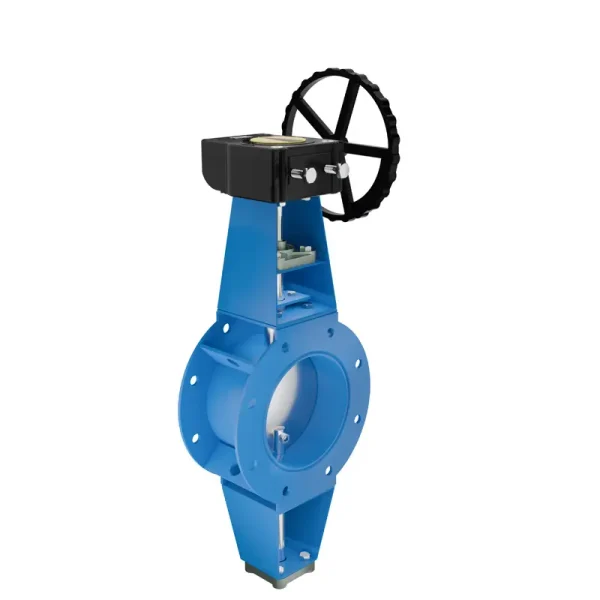

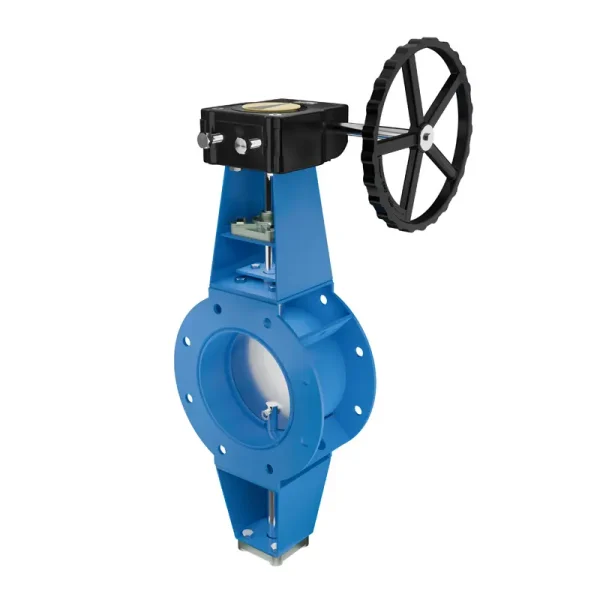

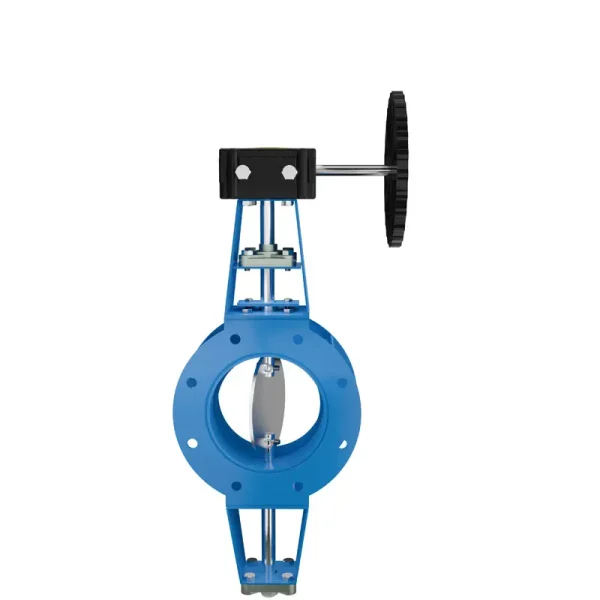

Fabricated Double Flanged Damper Valve

Size Range
8" To 80" (200 MM To 2000 MM)
Temperature Range
Upto 450 °C ( 400°C Upto 850°C On Request )
Working Pressure
5 Kg / Cm²
Inquiry Now

Approvals

“aira” Pneumatic Actuator Operated Butterfly Damper is designed for applications where tight sealing is less critical. Ideal for flue-gas scrubbers, it offers a lightweight, cost-effective solution with simple 90° motion. It can adapt to oval ducts and features a straightforward drive mechanism. However, torque requirements may vary due to corrosion and thermal effects over time.

Specification & Standard

Design & Manufacturer

API 609 Category A / IS : 13095 / BSEN 593 / AWWA C 504

Valve Face To Face Dimension

ASME B 16.10, Other F To F Available On Request

Inspection & Testing

API 598 / BSEN 12266-1 / AWWA C 504

Seat Leakage Class

5% Leakage of Main flow (Class 1 Available On Request)

End Connection

Double Flange Type

Top Flange Drilling

ASME B16.5 / 16.47 Series A Class 150 / AWWA C 504.

Disc Material

SS 304 , SS 316 , M.S. Fabricated, SS 304

Certification

Design CE Approved, SIL3 Approved, POD

Size Range

8" To 80" ( 200 MM To 2000 MM )

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Pressure Class

Only Body PN 6 (Maximum)

Media

Air, Water, Oil, Gas, Light Chemical , Steam & Valve Pressure-5 To 10Kg Cm² & Pneumatic Pressure - 5 To 10 BARS.

Leakage Class

4 To 5% Leakage Of Full Flow

Body Material

Cast Iron, S.G Iron, M.S Fabricated, SS 304

Seat Material

SS 304, SS 316, Metal To Metal

Features & Benefits

1 – Double Flange Design: Ensures a secure and leak-proof connection.

2 – Fabricated Construction: Offers high strength and durability.

3 – Precision Engineering: Provides smooth and accurate operation.

4 – Versatile Performance: Handles various pressures and temperatures.

5 – Easy Installation & Maintenance: Simplifies setup and upkeep.

6 – Customizable Sizes: Fits a range of applications.

Direct Mounting As Per ISO 5211

Fire Safe Design

Fabricated

Double Flanged Damper Valve

Dimension Table

Fabricated

Double Flanged Damper Valve

Dimension Table
