Double Offset

Rubber Seated Double Flanged Butterfly Valve

Size Range
3" To 60" (80MM To 1500MM)
Temperature Range
Upto 220°C
Working Pressure
PN 50
Inquiry Now

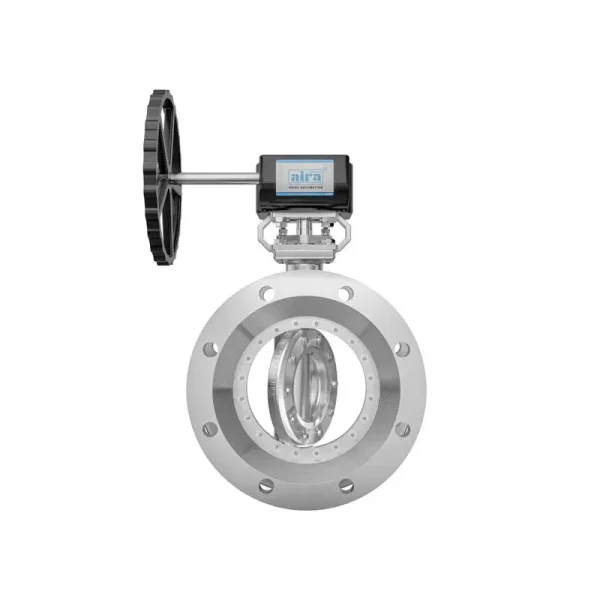

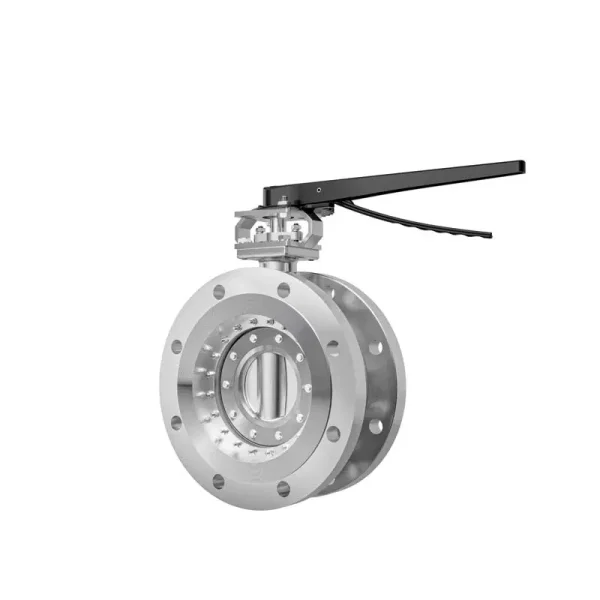

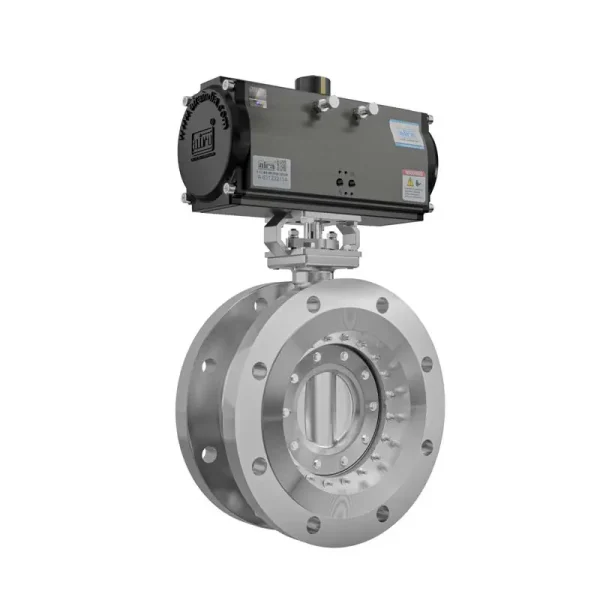

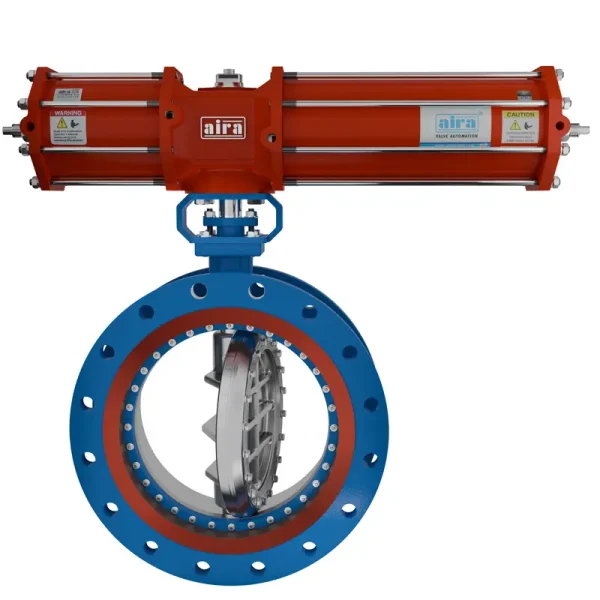

Double Offset Rubber Seated Double Flanged Butterfly Valve

Size Range
3" To 60" (80MM To 1500MM)
Temperature Range
Upto 220°C
Working Pressure
PN 50
Inquiry Now

Approvals

“aira” Offers Double Offset Rubber Seated Double Flanged Butterfly Valve is engineered for robust flow control in industrial settings. Its double offset design minimizes friction and enhances valve longevity, while the rubber seat ensures a secure, leak-proof seal. The double flanged construction allows for secure, stable installation in piping systems. Ideal for water, wastewater, and other fluid applications, this valve combines reliability with ease of maintenance.

Specification & Standard

Size Range

3" To 60" (80MM To 1500MM)

Tempreature Range

Upto 220°C

Pressurre Class

PN 50

Shutoff Rating

Tight Shut Off

Body Style

Double Flanged

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L / NITRONIC - 50 / DUPLEX 4A / 5A / 6A / 7A

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C 504

Testing Standard

API 598, BSEN - 12266-1, AWWA C 504

Face To Face

API - 609, BSEN 558, AWWA C 504 / 516

End Connection

Flanged End 150#, 300#

Features & Benefits

1 – Double Offset Design: Reduces friction and wear, promoting smooth operation and extending valve life.

2 – Rubber Seat: Ensures a tight, reliable seal to prevent leakage.

3 – Double Flanged Construction: Provides secure, stable installation and alignment in piping systems.

4 – Robust Performance: Ideal for handling water, wastewater, and various other fluids.

5 – Durability: Built to withstand demanding industrial environments with minimal maintenance.

6 – Versatility: Suitable for a range of applications requiring reliable flow control.

Direct Mounting As Per ISO 5211

Get in touch with our team at +91 9099477256 to receive the Dimension Table
