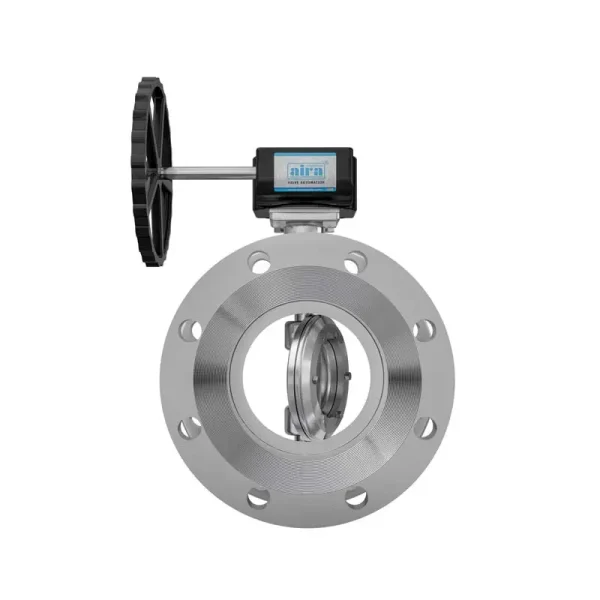

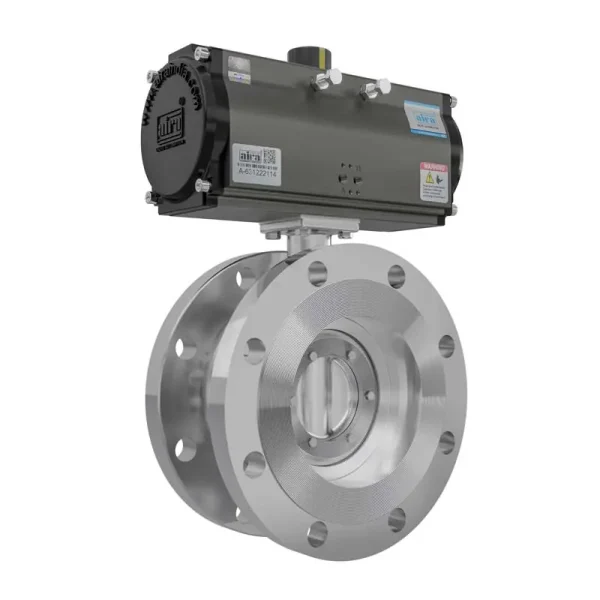

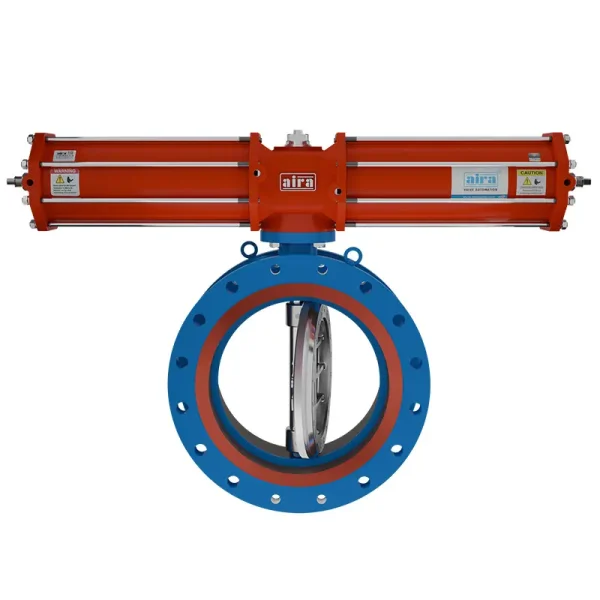

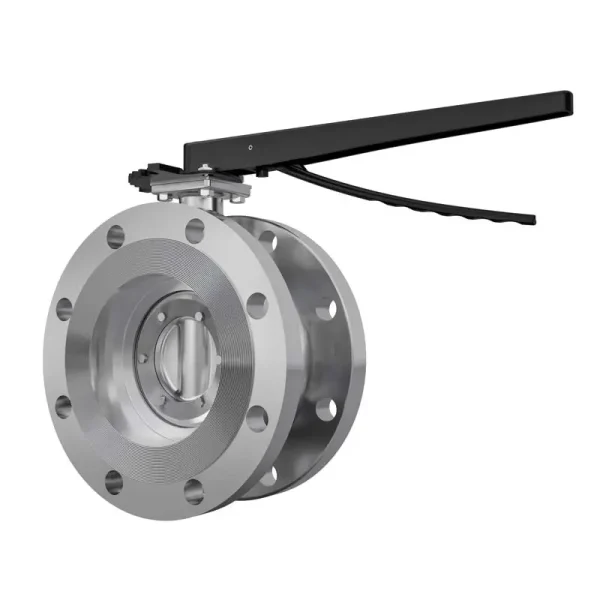

WKT Tripple Offset Double Flanged Butterfly Valve

Size Range
2.1/2" To 48" (65MM To 1200MM)
Temperature Range
Upto 220°C
Working Pressure
PN 16
Inquiry Now

Approvals

“aira” Offers Triple Offset Double Flanged Butterfly Valve offers superior sealing and durability with its advanced triple offset design. Its double flanged construction ensures secure installation and alignment in piping systems. Ideal for high-pressure and high-temperature applications, this valve combines precision performance with long-term reliability.

Specification & Standard

Size Range

2.1/2" To 48" (65MM To 1200MM)

Tempreature Range

Upto 220°C

Shutoff Rating

Tight Shut Off

Body Style

Double Flanged

Flange Drilling

150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2

Body Materials

WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20

Stem Materials

SS 304 / 316 / 410 / 17-4 PH / 316L

Seat Materials

EPDM, EPDM - H, VITON

Disc Materials

WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20

Design Standard

BSEN 593, ISI 3095, API 609, AWWA C - 504

Testing Standard

API 598 / BSEN - 12266-1 / AWWA C - 504

Face To Face

API - 609 / BSEN 558 / AWWA C - 504 / 516

Features & Benefits

1 – Triple Offset Design: Provides exceptional sealing and reduces friction, enhancing valve performance and longevity.

2 – Double Flanged Construction: Ensures secure, stable installation and precise alignment in piping systems.

3 – High-Performance Sealing: Delivers reliable shutoff even under high pressure and temperature conditions.

4 – Durable Materials: Built to withstand harsh environments and demanding applications.

5 – Versatile Use: Suitable for a range of fluids, including water, chemicals, and gases.

6 – Low Maintenance: Designed for minimal upkeep, offering dependable long-term operation.

Direct Mounting As Per ISO 5211

Get in touch with our team at +91 9099477256 to receive the Dimension Table
