2 Piece High Performance Floating Ball Valves 150#

Size Range
1/2" to 12" Flanged 150#
Temperature Range
Upto 180°C
Working Pressure
Up to 10 Kg/Cm²

Approvals

Approval
Approval
Approval
Approval
Approval

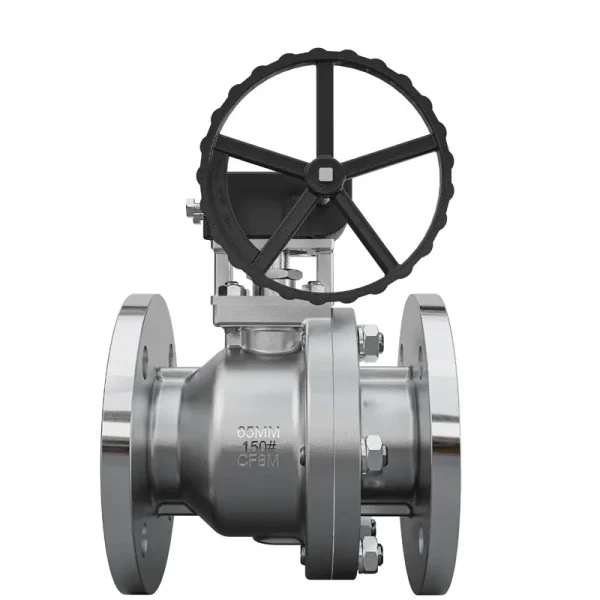

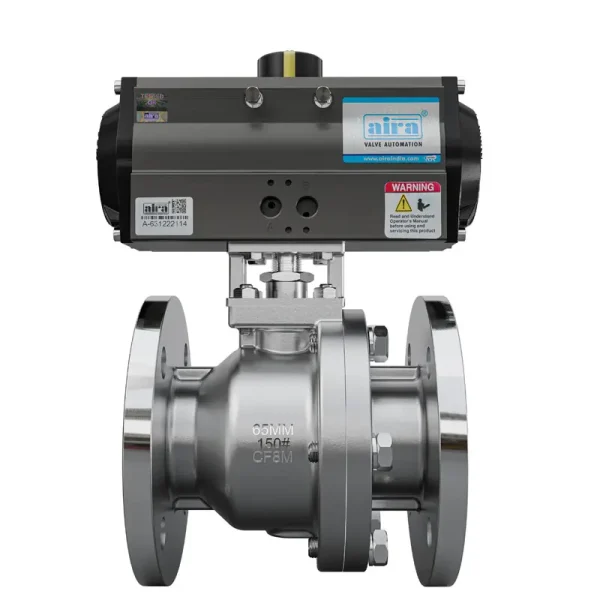

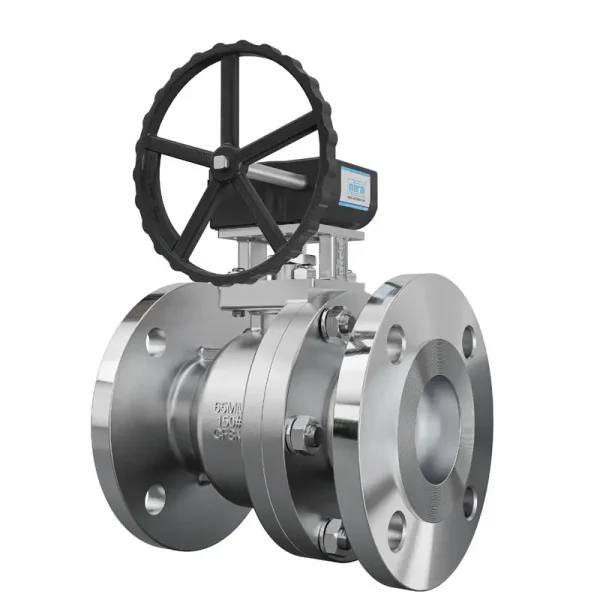

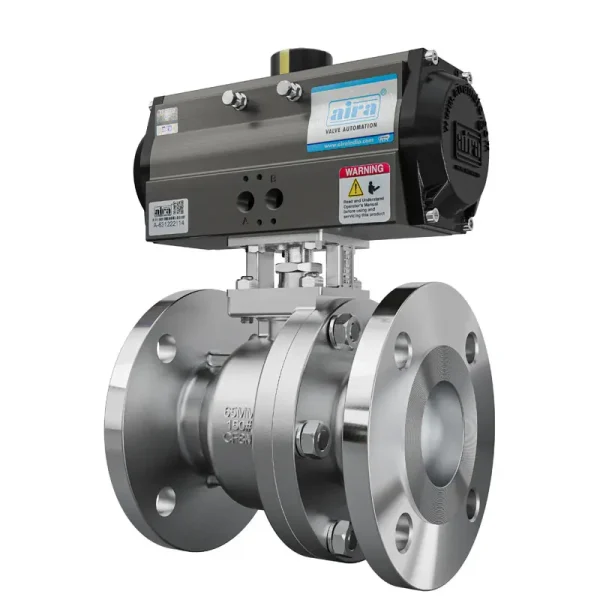

“aira” Offers Manual & Automation Operated Two Piece Design Floating Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream For Use In Oil & Gas Industry.

Specifications & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266- 1

Size Range

1/2" to 12" Flanged 150#

Fugitive Emissions

ISO 15848-1 A 2017

Ball Type

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Material

Hollow For 150#

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Certification

Design CE, SIL3, IBR, Fire Safe, EIL Approved

Leakage Class

ISO 5208 Class VI/ FCI - 70- 2/ ASME, ANSI 16,16.104

End Connection

ASME B 16.5 CLASS 150#

Temperature Range

Upto 180°C

Pressurre Class

150#

Media

Air/ Water/ Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK, D-PLASTIC

Flange Drilling

Asme B 16.5 Class 150#

1- Blow- Out Proof Stem.

2- Dual Shaft Seals Eliminate Leakage.

3- Anti-Static Stem Device.

4- API 607 Fire Safe Design.

5- Mirror Finished Ball With Slot Vented Ball For Thermal Expansion.

Fire Safe Design
Anti Static Mechanism
Direct Mounting As Per ISO 5211

2 Piece

High Performance Floating Ball Valve 150#

Dimension Left Dimension Right
Product Assembly

2 Piece

High Performance Floating Ball Valve 150#

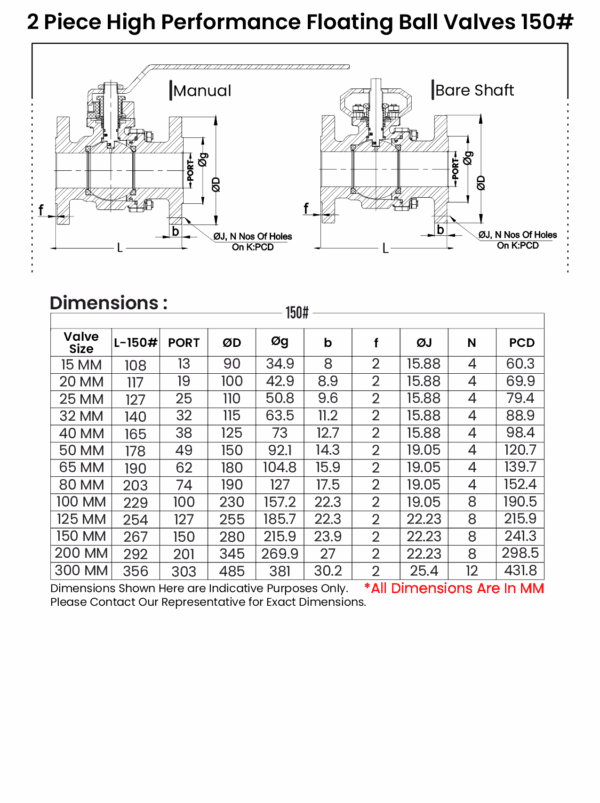

Dimension Table

Dimension Left Dimension Right

ADDONS

Extended Shaft
Extended Shaft
Locking Arragemant
Locking Arragemant
Deadman
Deadman
