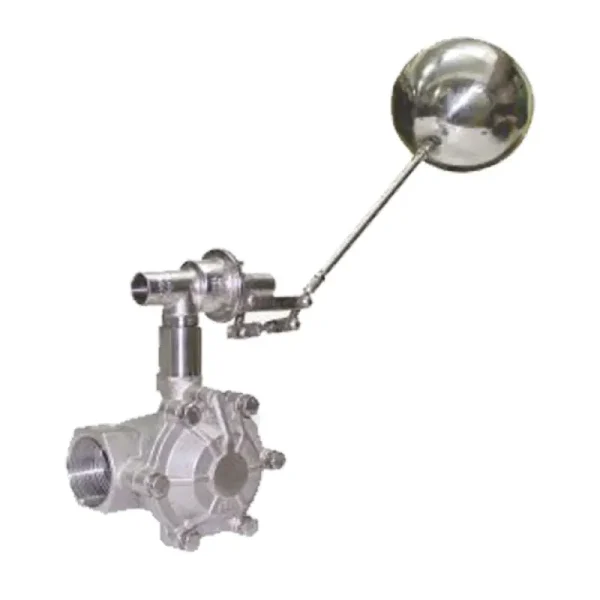

A High Pressure Full Flow Float Valve is a type of valve designed to control the water or fluid level in high-pressure systems, such as boilers, tanks, or pressure vessels. It features a float mechanism that adjusts the valve’s opening or closing position based on the liquid level, ensuring proper flow control and preventing overflow or damage to the system.
Specification & Standard
Size Range
15MM To 150MM
Tempreature Range
Upto 85°C
Pressure Class
12 kg/cm²
End Connection
Screwed / Flanged
Body Material
CF8
Media
Water
1 – Full Flow Design: Engineered to provide maximum flow capacity, ensuring efficient operation in high-pressure systems.
2 – Robust Construction: Built from high-quality materials, designed to withstand extreme pressures and harsh environmental conditions for long-lasting durability.
3 – Float Mechanism: Features a reliable float mechanism that ensures automatic control of liquid levels, preventing overflow and maintaining system stability.
4 – High Pressure Rating: Specifically designed to handle high-pressure applications, making it ideal for industries such as oil and gas, water treatment, and chemical processing.
5 – Quick Response: Designed for immediate reaction to changes in liquid levels, enhancing overall system efficiency and reliability.
6 – Easy Installation: User-friendly design allows for straightforward installation, facilitating quick integration into existing systems.
7 – Low Maintenance: Requires minimal upkeep, ensuring consistent performance and reducing operational costs.
High Pressure
Full flow Float Valve
High Pressure
Full flow Float Valve

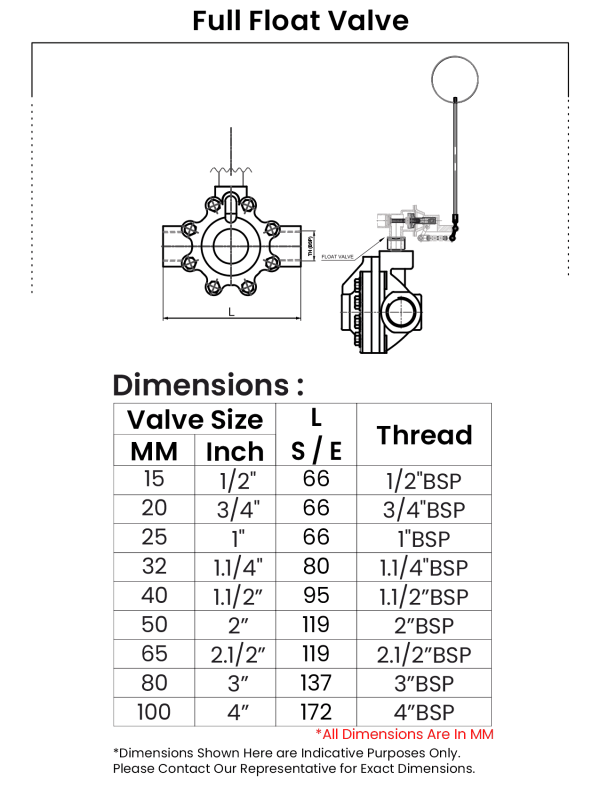

Dimension Table
