Approvals
“aira” Offers 2/2 – 3/2 way pneumatic diaphragm operated on/off 220°C Control Valve.
Specification & Standard
Size Range
15MM To 150MM
Tempreature Range
Upto 220°C Max
Shutoff Rating
Tight Shut Off Leakage Class - 6
Body Style
Soft
Flange Drilling
150#, 300#, 600#
Certification
IBR Approved
Body Materials
WCB / CF8 / CF8M
Stem Materials
S. S - 304 / S. S - 316
Seat Materials
PTFE / CFT / GFT
Plug Materials
S. S - 304 / S. S - 316
Design Standard
BS 6697
End Connection
Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request)
Testing Standard
FCI 70 - 2
Face To Face
ISA - 75.03, IEC 534 - 3
Leakage
CL VI for Soft Seating / FCI 70 - 2
Applications
Steam / Gas / Water
1 – Excellent For On / Off Application.
2 – Long Lasting Diaphragm Material.
3 – Easy Maintenance.
4 – Economy Price.
5 – High Temperature 220 ºC.

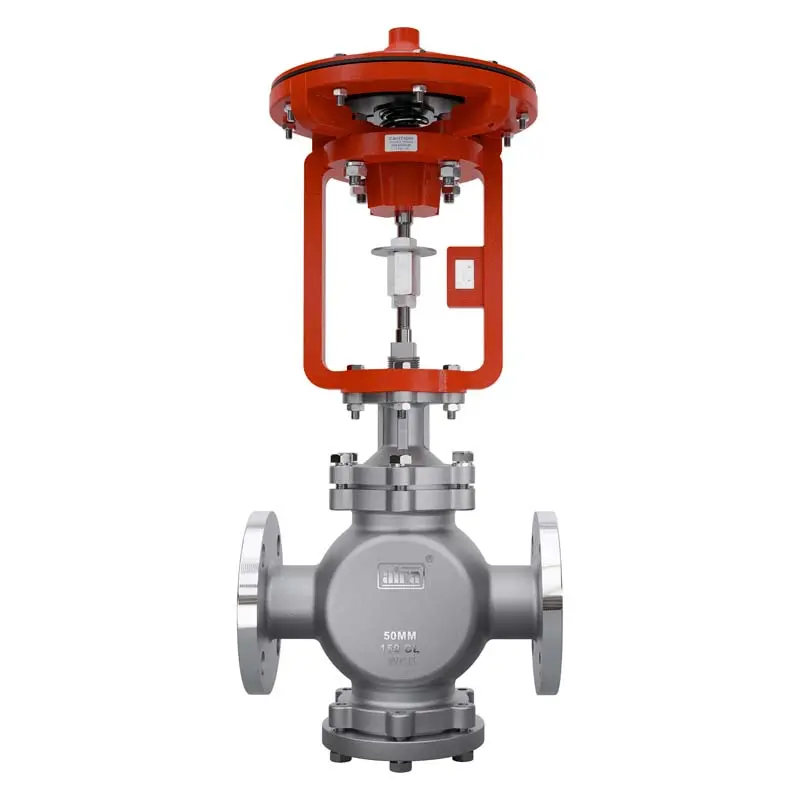

2-2 Way Low Temperature
On-Off Control Valve

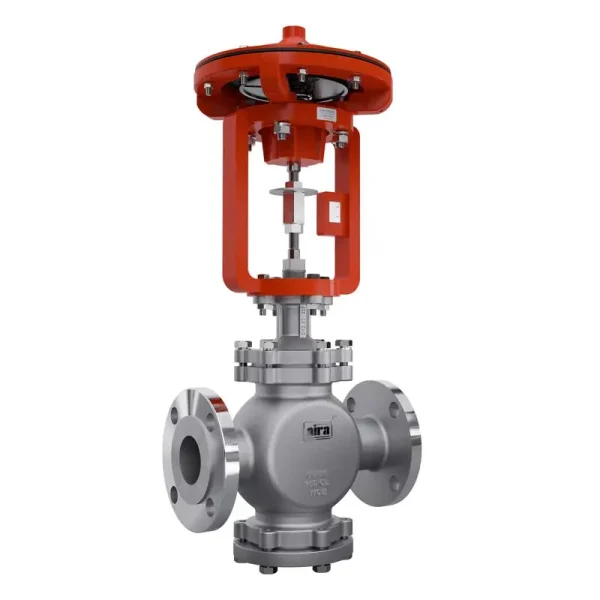

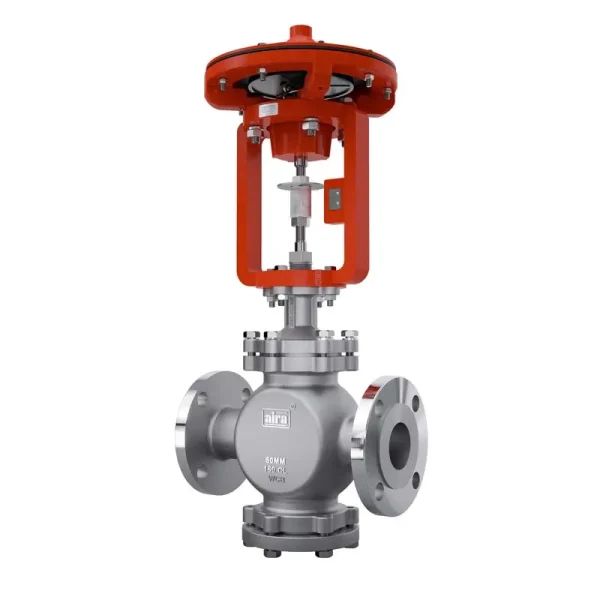

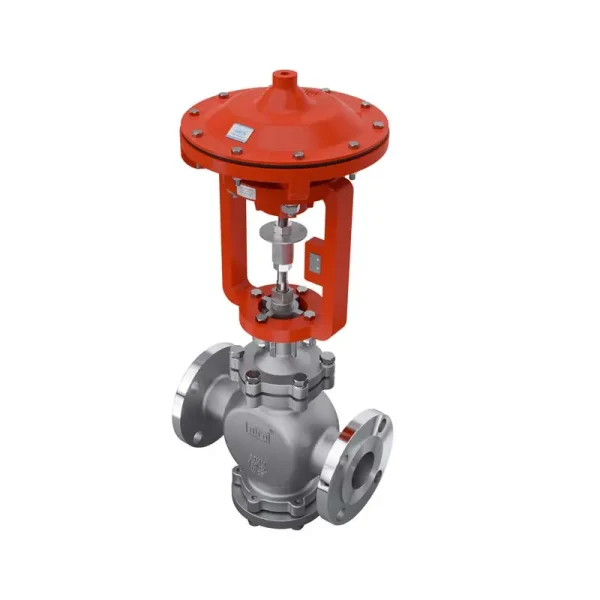

2-2 Way Low Temperature
On-Off Control Valve
Dimension Table
Accessories
