Globe Type On/Off SS Cap

Flanged Control Valve

Size Range
15MM To 100MM
Temperature Range
PTFE 180°C / CFT 220°C
Working Pressure
Upto 10 BAR
Inquiry Now

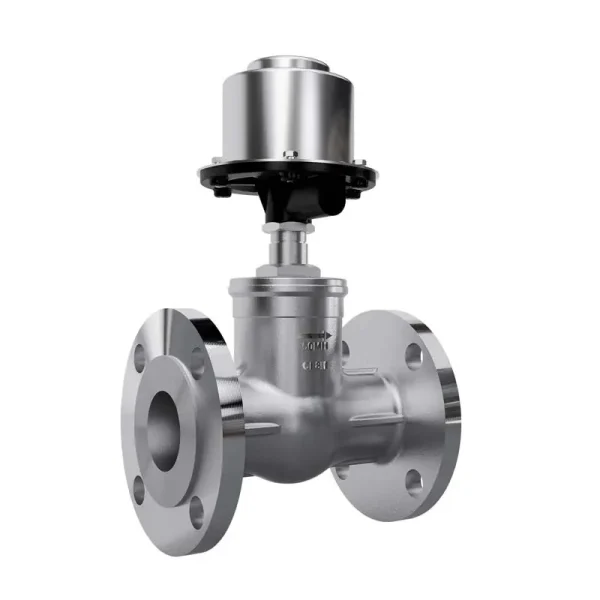

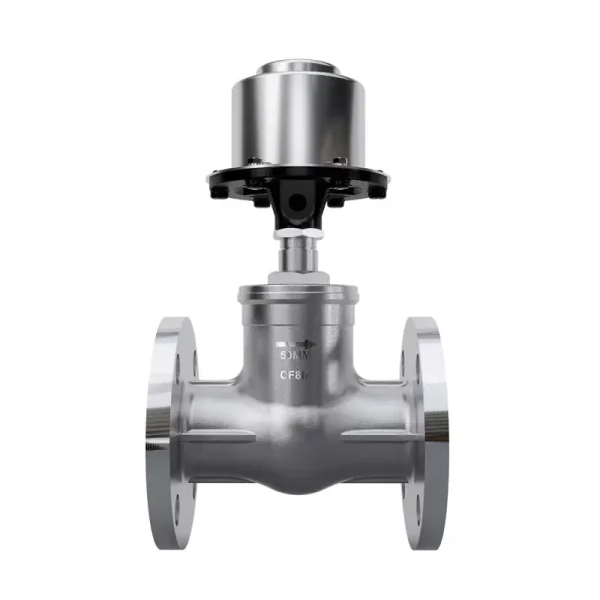

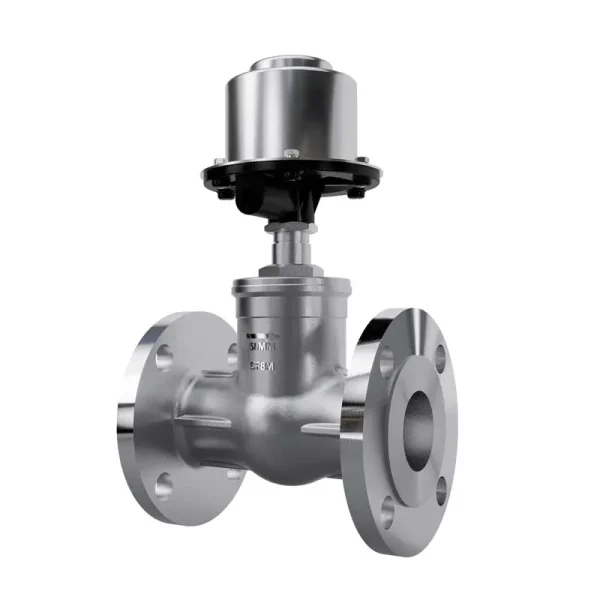

Globe Type On/Off SS Cap Flanged Control Valve

Size Range
15MM To 100MM
Temperature Range
PTFE 180°C / CFT 220°C
Working Pressure
Upto 10 BAR
Inquiry Now

Approvals

“aira” Offers 2/2-way Globe Control Valve, Pneumatically Operated, N/C & N/O universal actuators with modular universal accessory program up to control heads. They have a stainless steel body and are available with the choice of flange-, threaded- and weld-end port connections. Specifically engineered for reliable control in applications where accuracy is paramount, Fine chemical pressure and flow control High accuracy test bench equipment, Food, beverage and pharmaceutical CIPSIP and auxiliary processes with steam Pharmaceutical Sterilizers, Precision distillation apparatus, Sterile Packaging Machinery.

Specification & Standard

Size Range

15MM To 100MM

Temperature Range

PTFE 180°C / CFT 220°C

Pressurre Class

Upto 10 BAR

Shutoff Rating

Tight Shut off

Body Style

Flange End

Flange Drilling

150#

Certification

CE Approved

Body Materials

S. S - 304, S. S - 316-L

Stem Materials

S. S - 304

Seat Materials

PTFE, CFT, GFT

Plug Materials

S. S - 304

Design Standard

Manufacture - Standard

Testing Standard

API - S98, PN10

Face To Face

Manufacture - Standard

Leakage

As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight

Applications

Air / Water / Oil / Gas / Steam & Chemical

Features & Benefits

1 – Globe Valve ( On/Off Control ).

2 – Provides Precise Control Of Fluid Flow With On/Off Functionality.

3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop.

4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control.

5 – Made From High-Quality Materials For Durability And Long Service Life.

6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.

Globe Type On/Off SS Cap

Flanged Control Valve

Dimension Table

Globe Type On/Off SS Cap

Flanged Control Valve

Dimension Table
